Solar lights have rapidly become a go-to solution for energy-efficient outdoor illumination, particularly in public and municipal infrastructure. Among these, solar street lights stand out as a sustainable, cost-effective way to light highways, sidewalks, parking lots, and residential communities. This article delves into the height classifications of solar street lights, installation guidelines, and use-case variations, answering every relevant query along the way.
A Quick Overview of Their Functionality and Structure

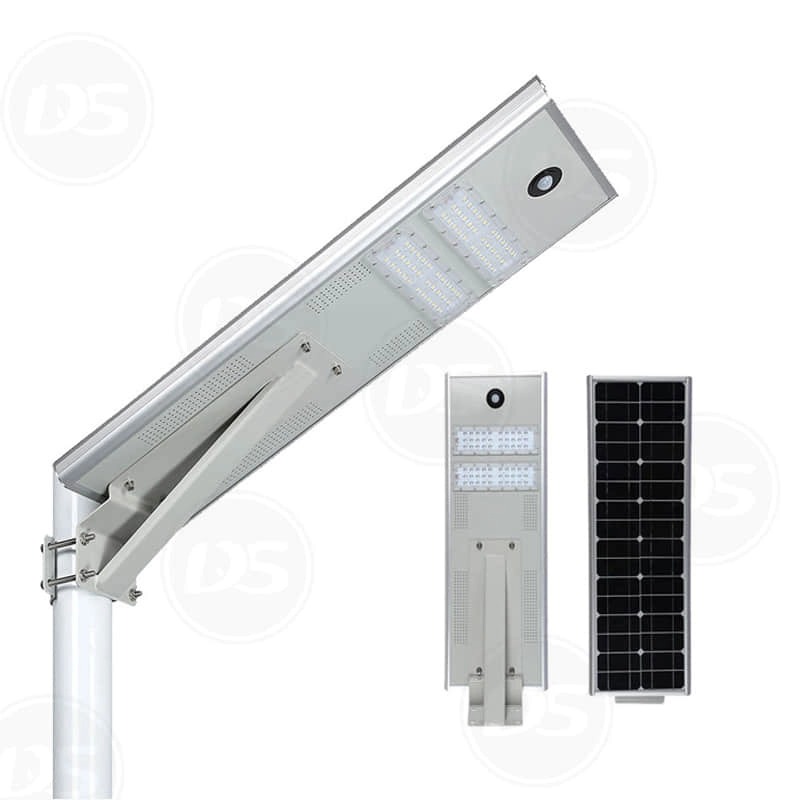

Before diving into height specifics, it's important to understand what solar street lights are. Essentially, these are autonomous lighting systems powered by photovoltaic panels, which capture solar energy during the day and convert it into electricity stored in batteries. The stored power is then used to illuminate LED light fixtures at night. Each unit typically consists of the following:
Solar panel (mounted on top or integrated into the pole)
LED luminaire (the light source)
Rechargeable battery (usually lithium-ion or LiFePO4)
Controller (to regulate energy storage and usage)
Mounting pole (varies in height)
The height of the pole plays a crucial role in determining light spread, illumination coverage, and shadow zones. Taller poles cover wider areas, but must also match luminaire wattage and beam angles for effective dispersion.
From Walkways to Highways—One Size Does Not Fit All
The height of solar street lights can vary significantly based on where and how they're used. Here’s a general guide to the most common height ranges for solar street light poles:
| Application Area | Recommended Pole Height |
|---|---|
| Garden Paths / Courtyards | 2 – 3 meters (6.5 – 10 ft) |
| Residential Streets | 4 – 6 meters (13 – 20 ft) |
| Urban Roads | 6 – 9 meters (20 – 30 ft) |
| Main Streets / Highways | 9 – 12 meters (30 – 40 ft) |
| Expressways / Airports | 12 – 15 meters (40 – 50 ft) |
In low-traffic or pedestrian-dense areas, shorter poles ranging from 2 to 6 meters are preferred. These provide sufficient brightness without overwhelming the surroundings. However, major roads or industrial zones demand higher visibility and wider light distribution, which is why poles as tall as 15 meters are commonly employed.
It's worth noting that pole height must correlate with the wattage of the solar light and its lens angle. A 6-meter pole might suffice for a 30W LED, while a 12-meter pole could require a 100W or higher wattage LED fixture to ensure consistent lighting.
A Deeper Look Into Design, Regulations, and Environmental Considerations
The decision to install a solar street light of a specific height is rarely arbitrary. Several critical factors influence pole height, including:
Different areas require varying Lux levels (a unit of light intensity). For example, a park trail might need only 10–20 lux, while a parking lot may require 50–100 lux for safety and surveillance. Taller poles, when paired with high-lumen LED fixtures, ensure this coverage is met.
The distance between two poles is directly proportional to pole height. Taller poles usually allow for greater spacing, thus reducing the total number of units required. However, uneven lighting may occur if spacing isn't optimized properly.
Taller poles are more vulnerable to wind load, especially in coastal or high-altitude regions. Engineering considerations, such as base diameter, anchor bolt design, and pole wall thickness, must be tailored to withstand local environmental stresses.
Municipalities often standardize light pole height across specific zones for aesthetic coherence and uniformity. Parks may use decorative 3-meter poles, while city boulevards utilize 8 to 10-meter commercial-grade poles.
In summary, solar street light height is a balance of technical, environmental, and aesthetic requirements. Consulting with professional engineers and referencing local building codes is essential before finalizing installation parameters.
Why Pole Height Can Make or Break Illumination Quality
The effectiveness of a solar street light isn’t just in its wattage or battery capacity—it also lies in the strategic pairing of pole height with the photometric distribution. Here's how it works:
Shorter Poles (2-4m): Great for pedestrian lighting and garden paths. Provide focused light but limited spread.
Mid-Range Poles (5-8m): Suitable for suburban streets and parking lots. These offer a balance between area coverage and brightness.
Tall Poles (9-15m): Used in commercial and industrial areas. They ensure fewer shadows and better uniformity but need higher-powered LEDs and precise beam control.
One often overlooked aspect is glare control. Installing a powerful light on a short pole increases the risk of glare, which can be hazardous, especially in traffic zones. Taller poles help diffuse light more naturally, reducing direct exposure to the eye.
How to Choose the Right Height for Your Project
When determining the ideal height for solar lights, especially in public or commercial projects, follow these best practices:
Conduct a Site Assessment: Evaluate the topography, local lighting needs, and traffic or pedestrian flow.
Determine Light Intensity Goals: Understand the required lux levels for the intended use.
Match LED Output to Height: Ensure the luminaire's wattage and optical lens can deliver consistent coverage from the desired height.
Consider Maintenance Access: Taller poles require bucket trucks or lifts for maintenance—factor this into long-term planning.
Account for Tilt Angles: Solar panels often need to be angled based on geographic latitude, and pole height influences the panel's sun exposure.
By integrating these best practices, stakeholders can ensure maximum performance and lifespan of their solar lighting systems.
A: While technically possible, a 3-meter pole is generally not recommended for public street lighting due to its limited coverage. It's better suited for walkways or courtyards.
A: The pole itself doesn't consume energy, but taller poles typically require higher-lumen LEDs, which demand more stored energy and therefore larger solar panels and batteries.
A: Yes, in many regions, local municipalities have specific regulations for minimum and maximum light pole height, especially near traffic intersections or airports.
A: Ideally between 6 to 9 meters, depending on the lot size and required brightness. Pairing the right height with a wide-angle beam ensures even coverage.
Final Thoughts on Selecting the Ideal Pole Size for Efficiency and Safety
In the world of solar lighting, height is more than a physical measurement—it's a strategic choice that impacts performance, safety, and cost-effectiveness. Whether you're illuminating a tranquil park or a bustling boulevard, selecting the right pole height ensures your solar street lights operate at peak efficiency. Always consider application, environment, and engineering data before installation.
