>> Product Processing
Simulation Process for LED street light pole in High Wind areas
The strength simulation process for LED street light pole typically in high wind areas involves not only creating a digital model of the structure using specialized software, but also taking into account the geometry, material properties, and support conditions of the high mast light, as well as the expected wind loads based on the site location and local climate data. By applying these wind loads to the model, engineers can simulate the behavior of the structure under different wind conditions and assess its performance.
How Is Quality Of LED street light pole Guaranteed
The use of professional equipment allows Dison Group to ensure the consistency in the manufacturing process, resulting in street lighting poles that are uniform in quality.In addition to using professional equipment, we also implement a strict quality control system to maintain the highest standards of quality in our street lighting poles. Through strict testing and inspection processes, Dison Group is able to identify and address any potential issues or defects before delivery.
>> Why Price From Other Manufacturer Is Much Cheap
Contrast of poles between Dison and some others
Recommended Technical Parameters
Height | Upper/Bottom(MM) | THK(MM) | Flange(MM) | Basic(MM) |
6M | 60/120 | 2.50 | 240*240*12 | 600MM*M18 |
7M | 70/140 | 2.75 | 260*260*12 | 700MM*M18 |
8M | 70/158 | 3.00 | 280*280*12 | 750MM*M18 |
9M | 80/185 | 3.25 | 300*300*14 | 800MM*M20 |
10M | 80/185 | 3.50 | 320*320*16 | 850MM*M22 |
11M | 80/200 | 3.50 | 350*350*18 | 950MM*M22 |
12M | 80/215 | 3.50 | 350*350*18 | 950MM*M22 |
Factory overview
>> Product Operate Guide

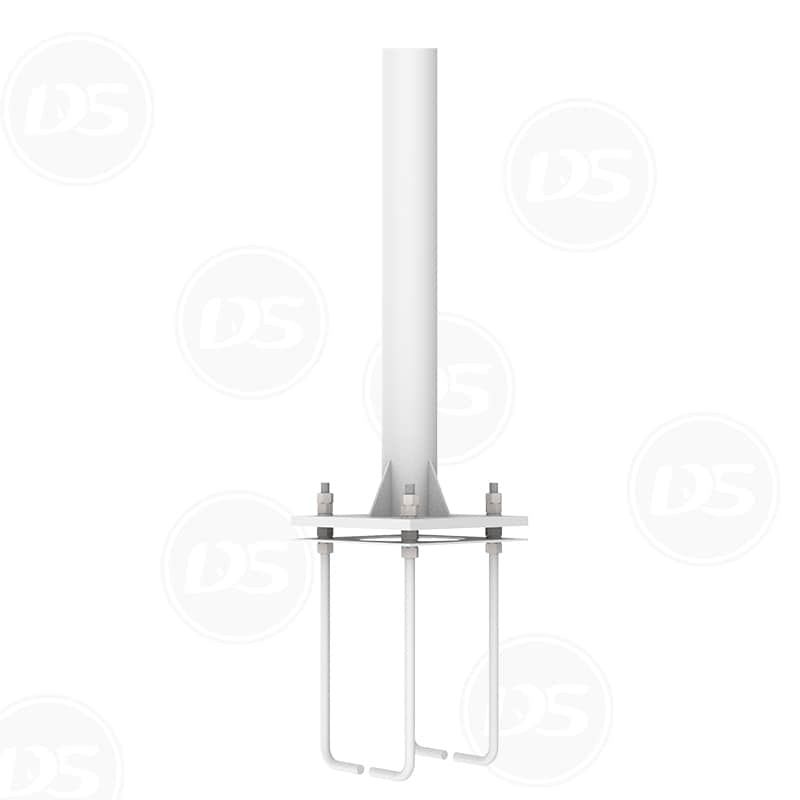

• Assemble the foundation kits of lighting pole following the instruction below:
NOTE
• leave enough space to mount flange during securing inner nut.
• install the template with level meter and ensure it is leveled.
• Wrap the screws on the top side with tape to protect it from being contaminated by concrete.
>> Product Advantages
| HIGH STRENGTH RAW MATERIAL Q235 steel with yield strength ≥235N/mm² and tensile strength of 375～500MPa are used to guarantee the strength. available to be installed in high wind areas with ＞30m/s wind. |
| HDG PROTECTION Hot-dip galvanized zinc coating thickness≥85μm,with excellent rust and corrosion resistance, ensuring the lifespan more than 30years. |
| EXCELLENT WELDING Superb welding process by professional and technical personnel with over 8years’ experience to get rid of pores in weld, undercut, overlap and ETC. |
| MARINE GRADE COATING Marine grade coat,double ensure the anti-corrosion and anti-rust characteristic of lamp post, meanwhile the coating design can be customized with different decorative needs making poles look more elegant. |
| GREAT ANTI-RUST TREATMENT All accessories are processed with anti-rust treatment, extend the service lifespan of whole lamp post. |
>> Product Applications
1. Lighting pole for Village road
Our lighting poles for village roads are designed to install LED lights providing efficient and reliable illumination for rural areas. These poles are specifically engineered to accommodate LED lights, ensuring energy saving and long-lasting performance.
Made of high-quality materials, our lighting poles are durable and weather-resistant, making them ideal for outdoor use on village roads. The modern design of the lamp posts add a new scenic attraction to village road while effectively lighting up the surrounding area.
2. Lighting pole for Factory/School/Park/Jetty/Parking lots
Lighting poles designed specifically for factory, School, Park, Jetty, and Parking lots are basically providing security for people around, meanwhile, it can also be equipped with additional accessories like CCTV camera,WIFI equipment and ETC.
Constructed with Q235 steel and processed with hot dip galvanization, our lighting pole offers a strong foundation to support various lamp fixtures. Its robust design guarantees stability and longevity, making it ideal for private area lighting.
3. Lighting pole for Passways
Properly lighting up passways can ensure the safety of residents during their way home after dark, simple installation of our street light pole at regular intervals can perfectly make you satisfied with the lighting performance.
