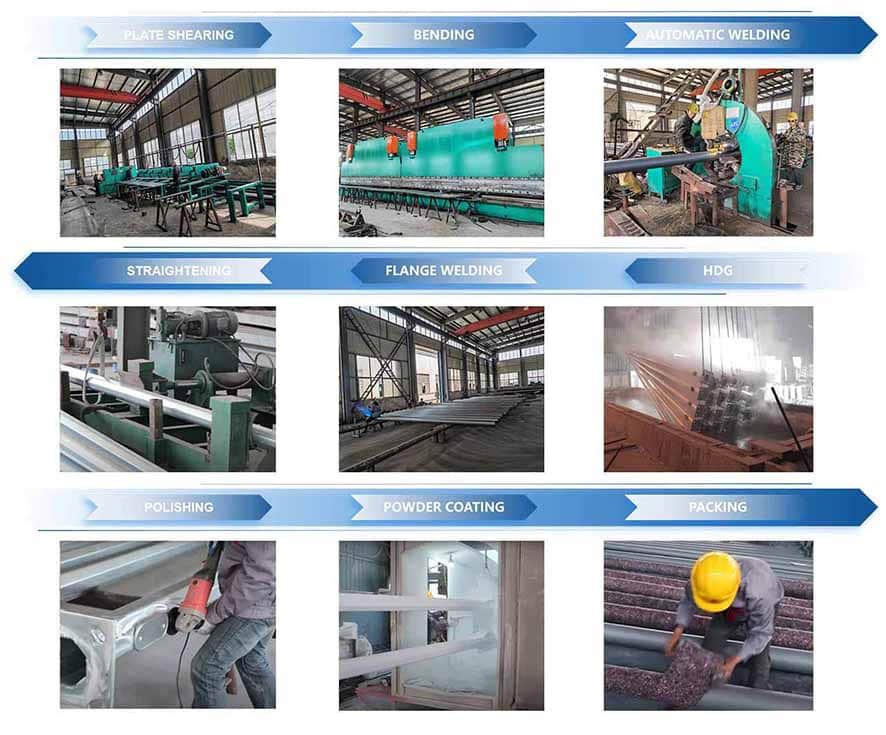

>> Product Processing

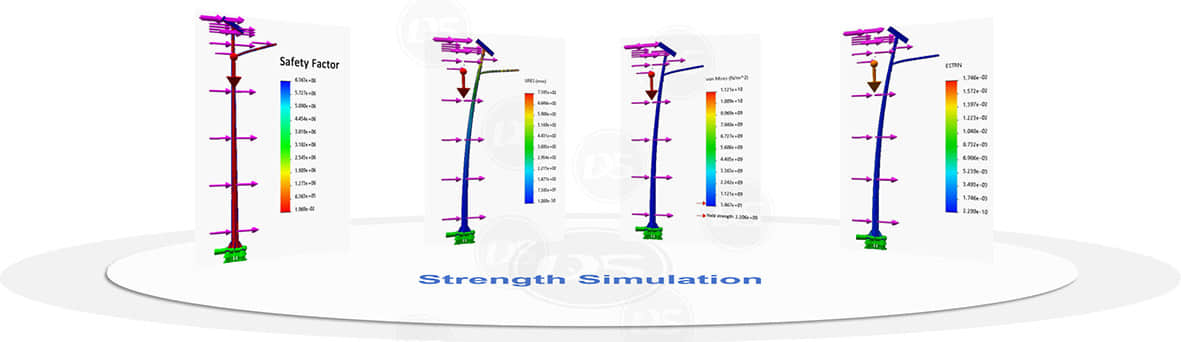

Simulation Process for High Mast Lights in High Wind
The strength simulation process for high mast lights typically in high wind areas involves not only creating a digital model of the structure using specialized software, but also taking into account the geometry, material properties, and support conditions of the high mast light, as well as the expected wind loads based on the site location and local climate data. By applying these wind loads to the model, engineers can simulate the behavior of the structure under different wind conditions and assess its performance.

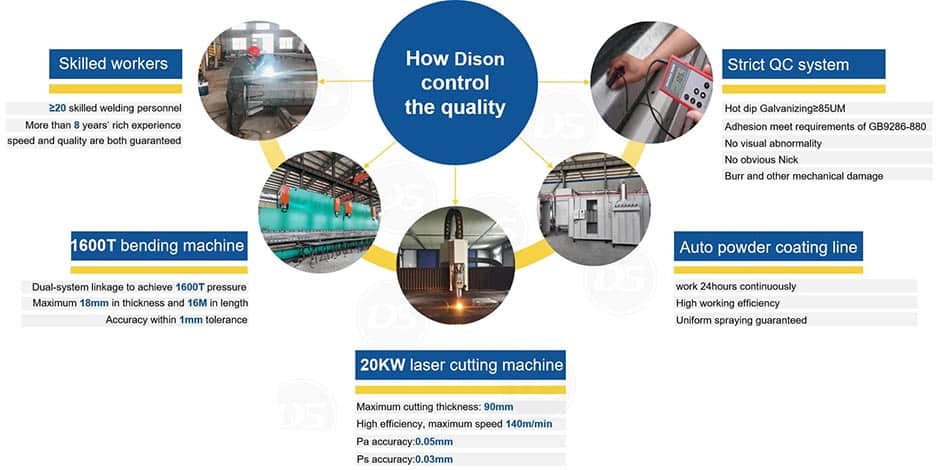

How Is Quality Of High Mast Poles Guaranteed
The use of professional equipment allows Dison Group to ensure the consistency in the manufacturing process, resulting in high mast lighting poles that are uniform in quality.In addition to using professional equipment, we also implement a strict quality control system to maintain the highest standards of quality in our high mast lighting poles. Through strict testing and inspection processes, Dison Group is able to identify and address any potential issues or defects before delivery.
>> Why Price From Other Manufacturer Is Much Cheap
Contrast of poles between Dison and some others
Recommended Technical Parameters
Height | Upper/Bottom(MM) | THK(MM) | Flange(MM) | Basic(MM) |
20M | 200/450 | 6 | 750*750*20 | 1800MM*M28 |
25M | 280/560 | 6.8.10 | 950*950*25 | 2000MM*M30 |
30M | 240/640 | 6.8.10 | 1000*1000*30 | 2500MM*M36 |
40M | 350/680 | 6.8.10 | 1000*1000*30 | 2500MM*M36 |
Data subject to change without advance notice
>> Product Advantages
| HIGH STRENGTH RAW MATERIAL Crafted from Q235 steel with yield strength ≥235N/mm² and tensile strength of 375～500MPa to guarantee the strength. available to be installed in harsh environment with ＞30m/s wind, maximum 60m/s. |
| EXCELLENT WELDING Superb welding process by professional and technical personnel with over 8years’ experience to get rid of pores in weld, undercut, overlap and ETC,eliminate the potential risks and increase the lifespan of high mast pole. |
| HDG PROTECTION To further enhance their durability and longevity, undergo a comprehensive Hot-dip galvanization with zinc coating thickness≥85μm,with excellent rust and corrosion resistance, ensuring the lifespan more than 30years. |
| MARINE GRADE COATING Marine grade coat is optional to double ensure the anti-corrosion and anti-rust characteristic of high mast post, meanwhile the coating design can be customized with different decorative needs making poles match to local culture. |
| LIFTING SYSTEM AVAILABLE 20-50M height available,can be equipped with automatic lifting system according to customer’s needs. |
>> Product Applications
1. Pole for Stadiums and Sports Complexes high mast lighting
High mast lights are commonly used in stadiums and sports complexes to provide bright and uniform lighting for events and games. The tall poles and powerful lights can effectively illuminate large areas, ensuring optimal visibility for players and spectators.
2. Pole for Parking Lots and Industrial Areas high mast lighting
High mast lights are also ideal for lighting up parking lots and industrial areas. The height of the poles allows for wide coverage, reducing the number of fixtures needed to adequately illuminate the space. This can help improve safety and security in these areas.
3. Pole for Ports and Airports high mast lighting
Ports and airports often require high mast lights to provide sufficient lighting for navigation and operations. The powerful illumination of high mast lights can help guide ships and planes safely in and out of these facilities, even in low visibility conditions.
4. Pole for Highways and Intersections high mast lighting
High mast lights are commonly used along highways and at intersections to provide clear visibility for drivers. The height of the poles helps to minimize glare and shadows, creating a well-lit environment that enhances safety for motorists.

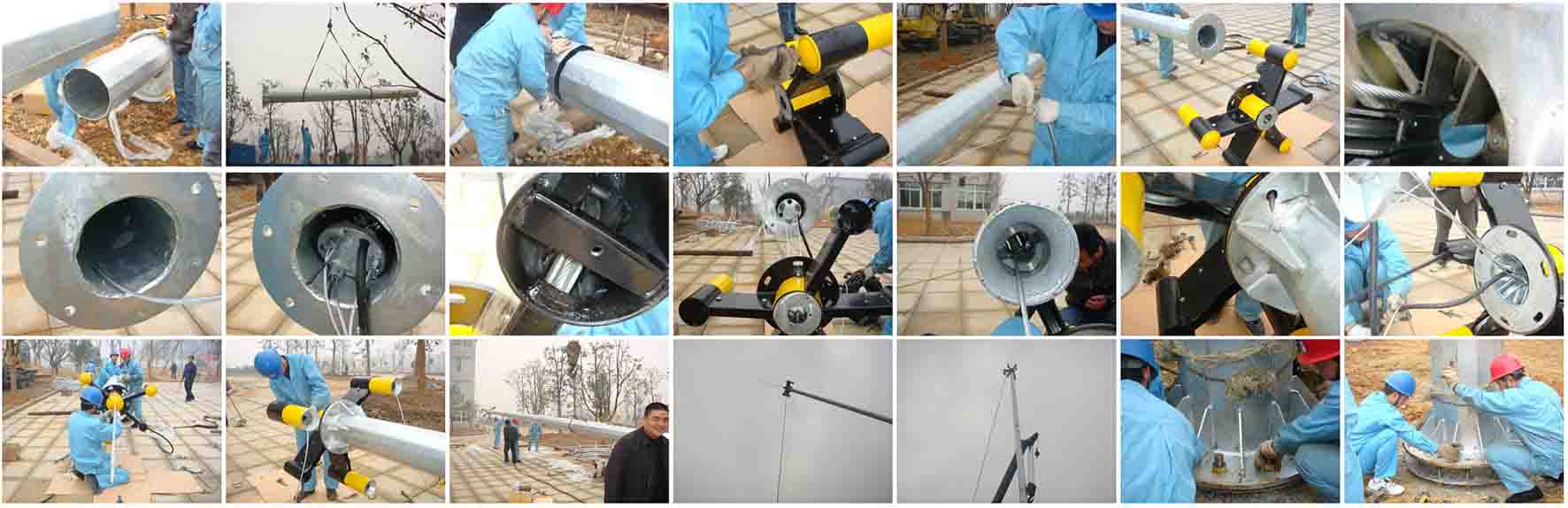

>> High Mast Light Pole Installation Guide

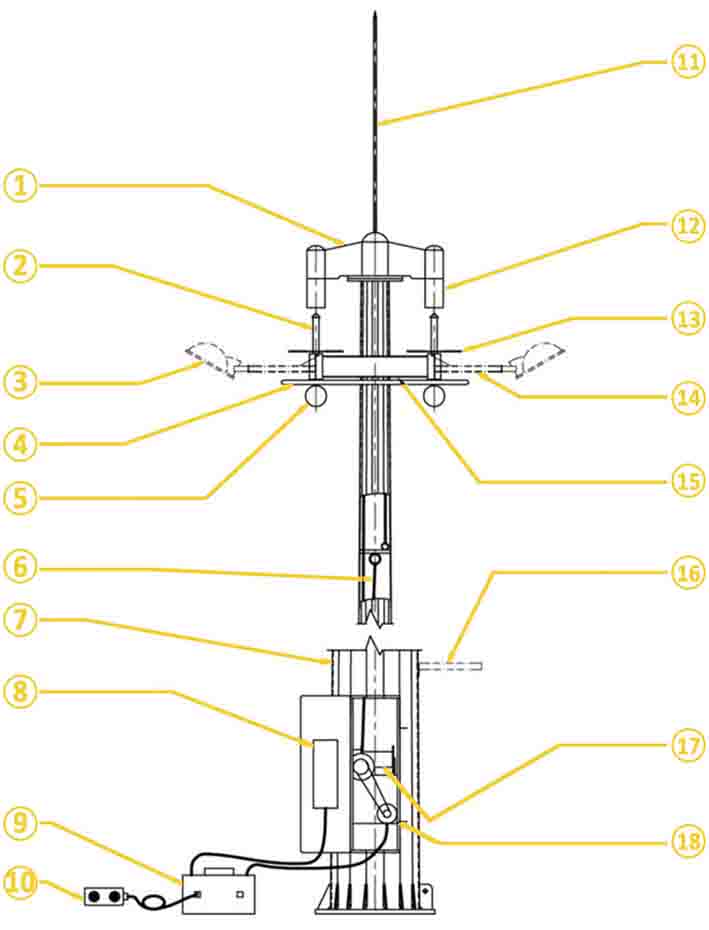

Main components of high mast pole | |||
NO. | Item name | NO. | Item name |
1 | Enclosed Pulley Shelf | 10 | Remote Control |
2 | Locking Pin | 11 | Lightning Rod |
3 | Floodlight Fixture | 12 | Locking Base |
4 | Alignment System | 13 | Indicator Discs |
5 | Termination of Lowering Cables | 14 | Fixture Mounting Arm |
6 | Main Lowering Cable | 15 | Fixture Mounting Ring |
7 | Pole | 16 | Removable Support Arm (3 off equi-spaced) |
8 | Electrical Control Panel | 17 | Windlass |
9 | Raise &Lower Control Box | 18 | Electric Motor |

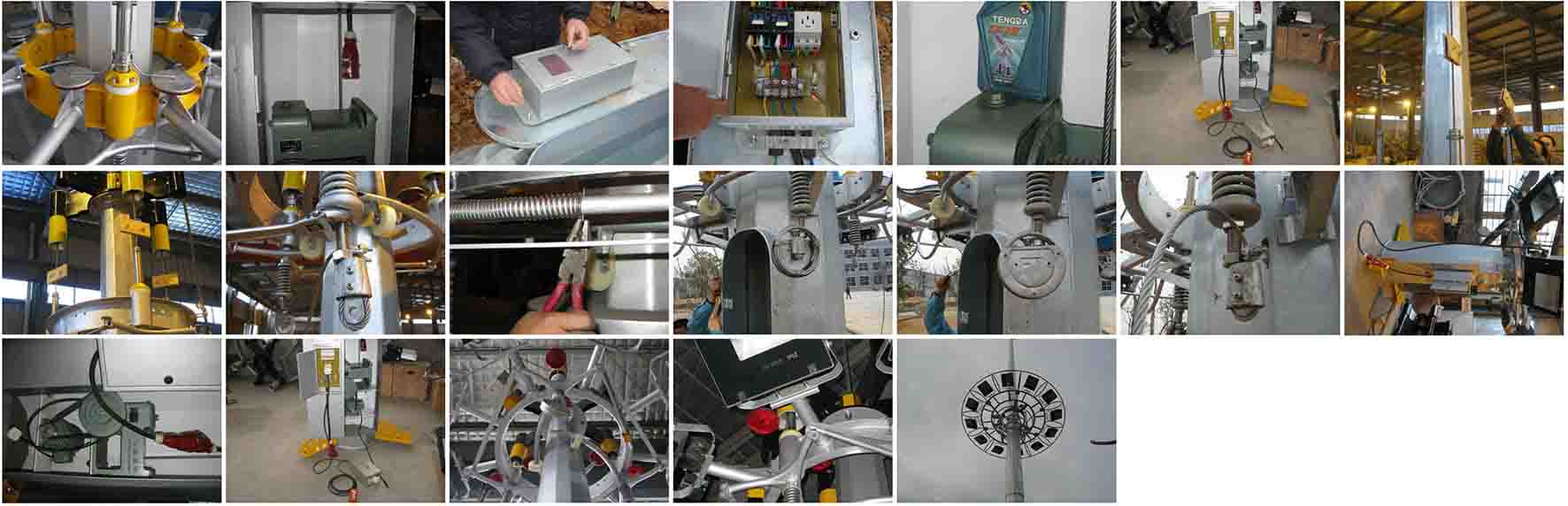

Installation of Pulley Shelf, Fixture Mounting Ring,Enclosed Pulley Shelf and Lightning Rod

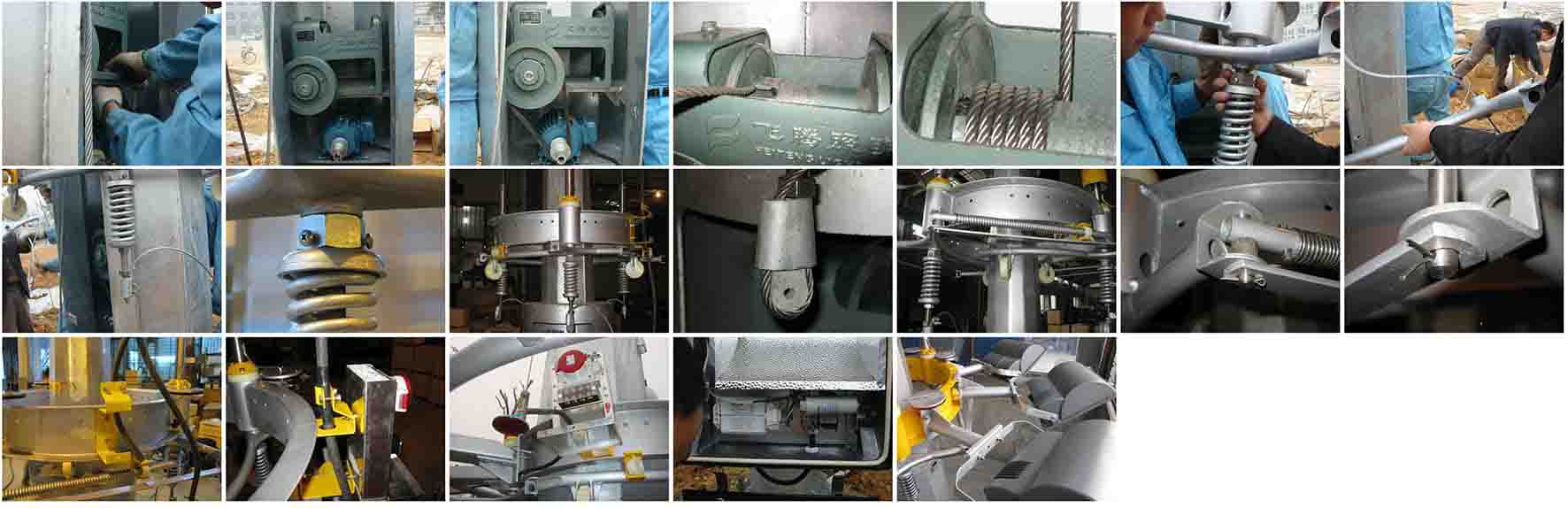

Installation of Windlass & Electric Motor, Alignment System,Fixture Mounting Ring Junction Box,Cable Termination, Indicator Discs , Fixtures, and Secure the Main Lowering Cable
Installation of Fixture Plug & Electrical Control Panel,Gearbox Oil,Connecting Remote Control Box, Leveling the Fixture Mounting Ring,Terminating the Lowering Cables,Testing Fixture Operation,Operation of the High Mast System,Completing the Installation.
