You need to know about ies light distribution for outdoor lights. These patterns show how LED street lights shine on roads and spaces. IES rules give standards to make streets safer and save energy. For example, good LED systems can use 50% less energy. The right lighting can also lower car accidents by 40%.
Impact Area | Benefit |
|---|---|
Energy Efficiency | LED street lights can use up to 50% less energy. |
Roadway Safety | Good lighting can cut car accidents by about 40%. |
A smart way is to pick the best distribution type for your project.
Table of Contents
IES light distribution types help you pick the best LED street lights. They make streets safer and use less energy. Type I works well for narrow paths. It gives focused light and does not waste energy. Type II covers more area for side roads and homes. It helps stop dark spots from forming. Type III is good for wide streets and parking lots. It helps people see better in these places. Type IV makes a half-circle of light. It is great for lighting the edges of big areas like parking lots. Type V spreads light in a circle. It works best for open spaces like plazas and parks. Using the right light type can cut energy use by up to 70%. This saves money and helps the environment. Always check what your project needs. Match the light type to keep people safe and follow the rules.

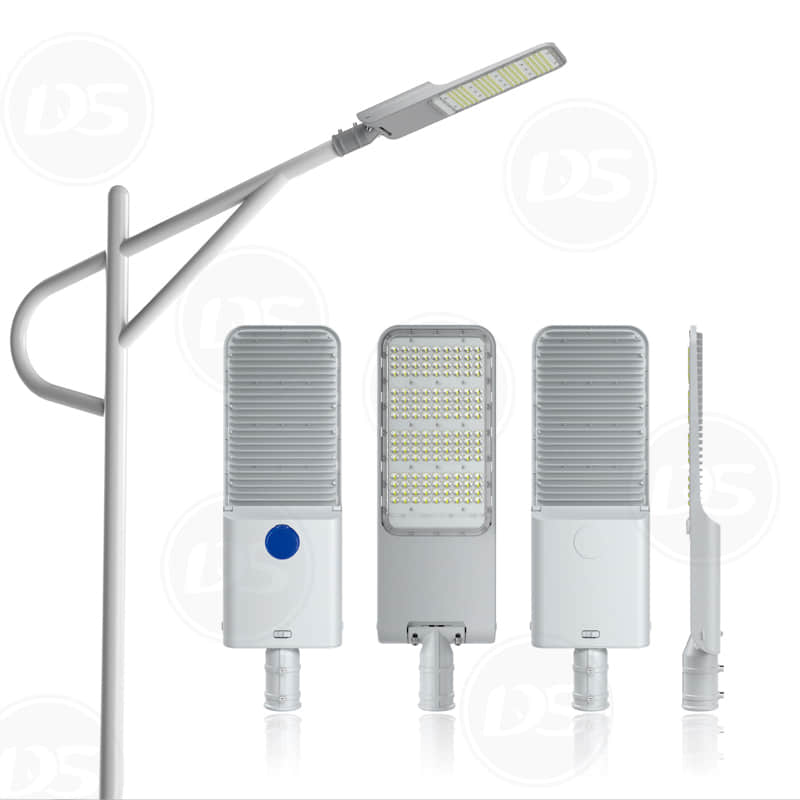

Street lighting works well because of ies light distribution. This system shows how led street lights spread light. The Illuminating Engineering Society, or ies, made a system to sort light patterns. These groups show the shape and reach of each light pattern.
Here are the main types in the ies system:
Type I
Type II
Type III
Type IV
Type V
Each type has its own light pattern. Type I makes a long, thin beam. Type II spreads light wider, good for sidewalks and narrow roads. Type III covers bigger areas, used for wide streets. Type IV sends light forward in a half-circle, great for parking lots and building edges. Type V shines light in a circle, lighting big open spaces. You can pick the right type to fit your project and help people see better.
You should think about light distribution when planning led street lights. Good light patterns make streets safer and more welcoming. Better lighting helps people see and feel less afraid at night. Darkness causes blind spots and shadows, which can lead to crime and make people feel unsafe. Bad lighting keeps people away, so there are fewer people to watch out for trouble. Good lighting makes people feel safer in their community.
Choosing the right light pattern helps make places safer. It also helps led street lights use less energy. Proper light patterns cut down wasted light and put brightness where it is needed. This helps both safety and saving energy. Ies light distribution lets you design better lighting for streets and public spaces.
You see Type I as a narrow, bidirectional beam. This pattern works best for walkways, sidewalks, or paths. The light spreads in a long, thin shape. It covers areas that stretch out in one direction. The fixture sends light out on both sides, making the path bright and safe. You get focused light that helps people see where they walk.
You should use Type I for narrow and elongated spaces. These include pathways, walkways, and bike trails. The fixture fits well in places where you need light along a straight line. You avoid wasted energy because the beam stays focused. You make sure people can see clearly and feel safe at night.
Tip: Choose Type I when you want to light up a path or sidewalk without spilling light into nearby areas.
Type II LED street lights create a wider light pattern than Type I. The fixture produces an elliptical shape that stretches outward. You see the type ii light pattern cover narrow roadways, alleys, and side streets. The fixture casts light 2.75 times wider than the mounting height. You get a forward-throw pattern that works well for one-sided street lighting.
Type II LED street lights give you a wider distribution for side roads.
The type ii light pattern works well in residential areas.
The fixture sends light outward while keeping intensity toward the roadway.
You minimize light spillage and keep the area bright.
You use type ii led street lights for narrow roadways, bike paths, and alleys. The fixture fits well in places where you need light to stretch across the street. You see the type ii light pattern in residential streets and sidewalks. The fixture works best at pole heights of 15-20 feet for residential streets and 10-15 feet for sidewalks or bike paths. You space the fixtures 100-120 feet apart for streets and 60-80 feet apart for paths.
Road Type | Pole Height | Spacing Distance |
|---|---|---|
Residential streets | 100-120 ft | |
Sidewalks/bike paths | 10-15 ft | 60-80 ft |
You choose type ii led street lights when you want to light up long, narrow spaces. The fixture helps you avoid dark spots and keeps the street safe.
Note: The type ii light pattern is ideal for residential areas where you need wider coverage without wasting energy.
Type III distribution gives you a broad lateral throw of light. The fixture projects light 1.5 times the mounting height in front and about 2.5 times the mounting height side to side. You place the fixture on the side of the street or parking lot. The type iii lighting distribution helps you reduce dark zones and cover more area.
Type III distribution works well for standard size streets.
You find the fixture in open parking lot spaces.
The fixture enhances overall area lighting.
You space fixtures about 75 feet apart when mounted at 15 feet high.
You use type iii lighting distribution for wider sidewalks, roadways, and parking areas. The fixture covers large spaces and gives you even light. You see the type iii distribution in places where you need to light up both the street and the sides. The fixture helps you keep the area safe and easy to see.
Type III Light Distribution | Suitable Environments |
|---|---|
Type III | Wider sidewalks, roadways, parking areas |
Tip: Choose Type III when you need to light up open areas and reduce shadows.
You get the most versatile coverage with Type III. The fixture helps you meet ies tm-15 distribution standards for street lighting. You make sure led street lights provide safety and efficiency.
You see type IV light distribution when you need to light up the edge of a large area. This pattern creates a wide, semicircular beam. The light spreads out in four directions, making a broad, square-shaped area bright. You often find this pattern used for perimeter lighting. The fixture pushes light outward and sideways, so you get excellent coverage along the sides of buildings or parking lots.
Type IV distribution works best when you mount the fixture on the side of a building or near the edge of a space.
The semicircular pattern helps you avoid dark corners and shadows.
You can use this pattern to light up large parking areas, building perimeters, and wide walkways.
You can compare the semicircular pattern to the forward-throw pattern of type ii led street lights. While type ii led street lights focus more on narrow roads and paths, type IV covers a much wider area. You get more side-to-side coverage with type IV, which makes it perfect for open spaces.
Type IV distribution sends most of its light forward and to the sides. You can use this to light up the edges of parking lots, sports courts, or the sides of warehouses. The fixture does not waste light behind it. Instead, it directs brightness where you need it most. You can see the difference in a light distribution types chart, where type IV stands out for its wide, forward reach.
Tip: Use type IV distribution when you want to light up the edge of a large area without spilling light into unwanted spaces.
You can use type IV fixtures to create a safe and bright environment. You help people see better and feel safer at night. You also save energy by putting light only where you need it.
Type V light distribution gives you a perfect circle of light. The fixture sends light in all directions, creating even brightness in every part of the area. You see this pattern when you need to light up big, open spaces. The circular pattern works well for plazas, intersections, and large parking lots.
You can check a chart to see how type V compares to other patterns. Type V covers the largest area with the most even light. You do not get dark spots or uneven patches. The fixture works best when you mount it in the center of the space.
You use type V distribution for general area lighting. The fixture lights up parks, playgrounds, and large outdoor courts. You can also use it for big parking lots where you need to see in every direction. Type V works well with led fixtures because it spreads light evenly and reduces glare.
You can compare type V to type ii led street lights. Type ii led street lights focus on narrow roads, but type V covers wide, open spaces. You get the best results when you use type V for central mounting and type ii led street lights for side mounting.
Light Distribution Type | Best Application | Mounting Location |
|---|---|---|
Type II | Narrow roads, sidewalks | Side of road |
Type IV | Perimeter, parking lots | Edge of area/building |
Type V | Open areas, plazas | Center of area |
You can use this chart to help you pick the right pattern for your project. You make sure every area gets the right amount of light. You also improve safety and save energy.
Note: Always match the light distribution type to your site needs. This helps you get the best results and follow IES standards.
You need to look at your project before picking the right led street lights. Start by checking the size and shape of the area. Think about how much light you want and where you need it most. If you plan for a busy street, you must make sure the lighting covers the whole roadway. For a quiet neighborhood, you can use less intense lighting. Look at the traffic, the number of people, and the type of street. You should also consider if the area is for cars, bikes, or walking. Each space needs a different distribution pattern.
Tip: Make a simple map of your street or outdoor area. Mark where you want led street lights and note the width and length of each section.
You must measure the width of the roadway and decide how high to mount the led street lights. Wider streets need a broader distribution. Narrow streets work best with focused types. Mounting height changes how far the light spreads. If you mount fixtures higher, the light covers more area but may lose brightness. Lower mounting gives you stronger light but covers less space. You should match the mounting height to the width of the street for the best results.
Roadway Width | Mounting Height | Recommended Distribution Type |
|---|---|---|
Narrow | 10-15 ft | Type I or Type II |
Medium | 15-20 ft | Type III |
Wide | 20-30 ft | Type IV or Type V |
You can use this table to help you choose the right led street lights for your roadway lighting project. Always check the ies standards for mounting and spacing.
You must match the distribution type to your street application. If you want to light up a long, straight street, use Type I or Type II. For wider streets or parking lots, pick Type III or Type IV. Open plazas and large outdoor spaces need Type V. The right distribution gives you even coverage and helps people see better.
Choosing the correct ies light distribution type saves energy and lowers maintenance costs. Led fixtures last longer, so you replace them less often. You spend less money on materials and labor. Proper distribution also reduces glare and keeps the area safe. You help protect the environment by using less energy and following code rules.
It helps you meet code requirements and protect the environment.
Optimized lighting reduces glare and extends fixture lifespan, so you do less maintenance.
You make your street lighting project successful when you match the right distribution to your needs. Led street lights give you bright, safe, and efficient lighting for every roadway and outdoor space.
Proper IES light distribution makes streets safer. Good lighting helps drivers see the road and curves better. It also helps people notice walkers and bikers sooner. Using the right led street lights lowers accident risks. Even lighting makes it easier to see at night. Drivers can spot things in the road and react faster.
Safety Benefit | Description |
|---|---|
Clearer identification of road edges and curves | Makes it easier for drivers to see where the road goes. |
Improved recognition of pedestrians and cyclists | Helps drivers notice people and bikes more quickly. |
Reduced collision risk with fixed obstacles | Makes it easier to see things that do not move. |
Faster driver reaction times | Good lighting helps drivers respond faster to changes. |
Fewer accidents happen at night with uniform led street lights. Studies show good lighting can cut car crashes by 40%. Type II lighting can lower accidents by 30%. Well-placed led street lights help keep busy areas safer. More even lighting also lowers crash risk. Bad lighting makes accidents more likely. Led street lights make roads brighter and help drivers see lines and dangers.
Tip: Even led street lights help everyone see better and stay safe.
You save energy with led street lights that use the right IES distribution. Led fixtures use less power than old lights. You can cut energy use by 50% to 70% when you switch from HPS to led. Better light uniformity means you do not waste energy. Picking the right fixtures helps you use less power.
Led street lights with good distribution lower energy bills.
They help cities reach energy-saving goals.
Led fixtures last longer, so you spend less on repairs.
Led street lights with even lighting make streets brighter and safer. Using less energy also helps the environment.
Using proper IES distribution helps you follow city rules. Many places need full cutoff fixtures, so no light shines up. This helps keep the night sky dark. The BUG rating checks backlight, uplight, and glare. It makes sure your led street lights fit the right area. Light trespass rules stop light from shining on other properties.
Regulation Type | Purpose | Example Source |
|---|---|---|
Helps cities design lights that do not pollute the sky. | IES gives standards many cities use. | |
Glare and Light Trespass | Stops light from shining on neighbors and cuts glare. | Boulder, Colorado limits light at property lines to 0.1 foot-candles. |
Color Temperature Regulation | Controls how lighting affects people and animals. | Phoenix, Arizona needs outdoor lights to be 3000K or less. |
You follow these rules with led street lights that have good uniformity and distribution. This helps your city obey laws and protects people and animals. You also stop glare and light pollution from your street lights.
Note: Led street lights with even lighting and the right IES distribution help you meet all outdoor lighting rules.
Picking the right ies light distribution for led street lights is important. It helps keep people safe and saves energy. You also follow the rules when you match the light pattern to each street. Measure your area first and look for trees or buildings that block light. This helps you avoid mistakes.
Pick the best type for your space every time.
Try using photometric tools or talk to lighting experts.
Make sure your lights cover the whole area with no dark spots or glare.
Planning well makes roads safer and people in your community happier.
Benefit | How It Helps You |
|---|---|
Cost Reduction | Stops waste and lowers your costs. |
Customization | Gives you the lighting you need. |
IES stands for Illuminating Engineering Society. This group creates standards for lighting. You use these standards to pick the right LED street lights for your project.
You look at the area you want to light. Measure the width and shape. Match the IES type to your needs. Use Type I for paths, Type III for wide streets, and Type V for open spaces.
You should not use one type everywhere. Each street or area needs a different pattern. Using the right type gives you better safety and saves energy.
Type II covers narrow roads and paths. Type III lights up wider streets and parking lots. You get more side-to-side coverage with Type III.
Tip: Check your street width before choosing.
Mounting height changes how far the light spreads. Higher poles cover more area but may look dimmer. Lower poles give brighter light in a smaller space.
Pick fixtures with full cutoff designs. Aim the light only where you need it. Use the right IES type to avoid wasted light and glare.
You get better results with expert help. Professionals use special tools to plan lighting. This helps you avoid dark spots and follow city rules.
