| Quantity: | |
|---|---|

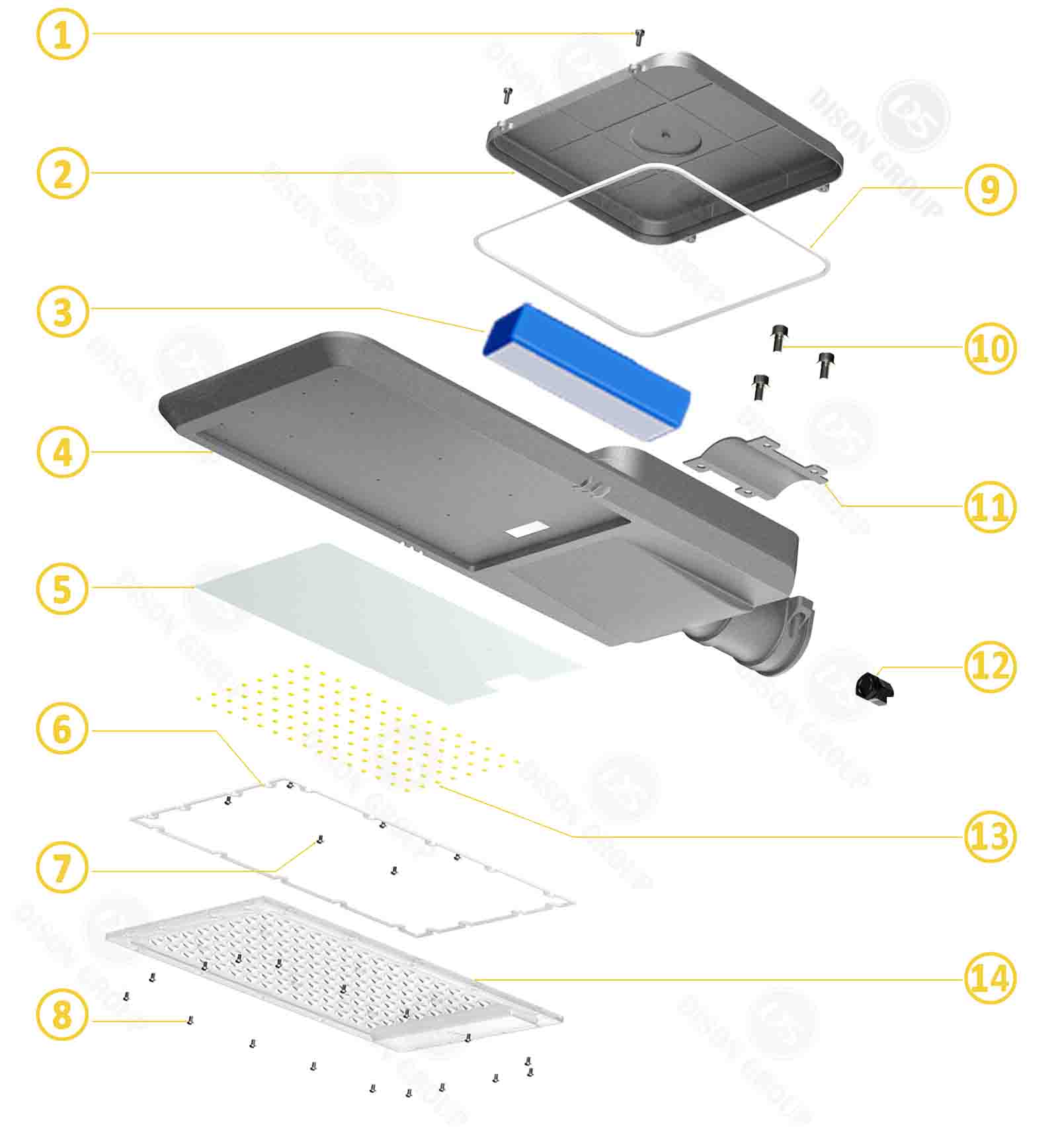

>> Explosion View
Components of solar street lamp | |||
NO. | Item name | NO. | Item name |
1 | Screw for lamp cover | 8 | Screws for optical lens |
2 | Lamp cover | 9 | waterproof ring |
3 | LifePo4 lithium battery | 10 | Screws for socket |
4 | lamp fixture main body | 11 | Socket |
5 | PCB board | 12 | waterproof connector |
6 | waterproof ring | 13 | LED chips |
7 | Screw for PCB board | 14 | optical lens |
Optional accessories
Anti-theft thorn
CCTV camera
Anti-bird thorn
PIR sensor

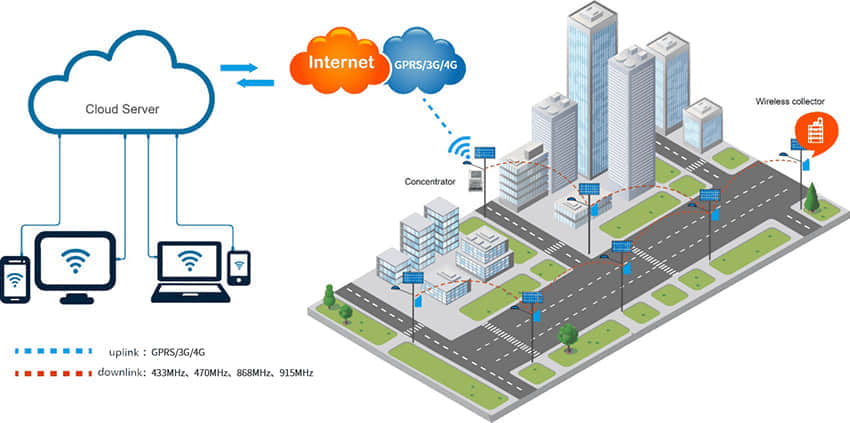

IOT System
>> Technical Parameters
Model | DS-VSSL2 80W-200W VERTICAL SOLAR STREET LIGHT |
LED LIGHT | 120pcs 3030 LED chips,≥130lm/w, CRI≥70,3000-6500K customizable |
Solar panel | customized |
Lithium battery | customized |
Solar controller（PWM/MPPT） | 10-20A |
Product size | 660*265*100mm |
Suggested install height | 7-12M |
Lighting mode | 10-12hours per day/ can be customized |
IP rate/IK | IP66/IK08 |
Working temp | -25℃ to 65℃ |
Backups | ＞3days |
Lifespan | ＞10 years |
Warranty period | ＞3 years |
Motion sensor | Optional |
CCTV camera | Optional |
All components can be adjusted according to customer's needs | |
DIALUX SIMULATION TO SEE ACTUAL PERFORMANCE
Factory Overview
>> Product Advantages
| EASY INSTALLATION AND MAINTENANCE The columnar vertical solar panel adopts a fully modular design concept, which is easy to transport and install. There is no need to weld and assemble the solar panels at the installation site, which is simple and convenient. |
| IMPROVED AESTHETICS The columnar design is more modern and beautiful in appearance, which can be better integrated with the appearance of the building and enhance the overall landscape effect of the city. |
| BETTER RESISTANCE TO WIND The force-bearing area of the columnar structure is relatively small, and the resistance it encounters is smaller than that of a large-area flat plate, so the overall wind load it is subjected to is relatively small. |
| PROTECTION AGAINST SNOW AND SAND vertical solar panels have no tilt angle to allow dust and snow to stay. The accumulated snow and sand will slide down under their own gravity or be blown away by the wind without sticking to the panels. |
| 360°ALL-ROUND CHARGING 6 solar panels wrap around the light pole, ensuring that 50% of the solar panels are exposed to light at any time of the day, allowing for 360° all-round charging. |
>> Product Applications
1. Urban roads
Vertical solar LED street lights can play an important role on both sides of the main and secondary roads in the city. These roads have large traffic and pedestrian flows, and the lighting demand for street lights is high. Columnar solar panel modules can utilize the vertical space of street light poles to effectively collect solar energy and provide sufficient energy for LED street lights.
2. Natural scenic areas
In natural scenic areas, columnar solar panel LED street lights can be coordinated with the natural landscape. Their appearance can be designed to blend with the natural environment, such as imitating the shape of trees or adopting natural colors. The vertical solar panel modules can be cleverly hidden in the structure of the street light to avoid destroying the original beauty of the scenery.
3. Around warehouses and logistics centers
Around warehouses and logistics centers, Vertical solar LED street lights can provide good lighting to facilitate the loading, unloading and transportation of goods. Its stable lighting performance and independent power supply mode can still guarantee basic lighting needs when the power grid fails, ensuring the safety and smoothness of logistics operations.

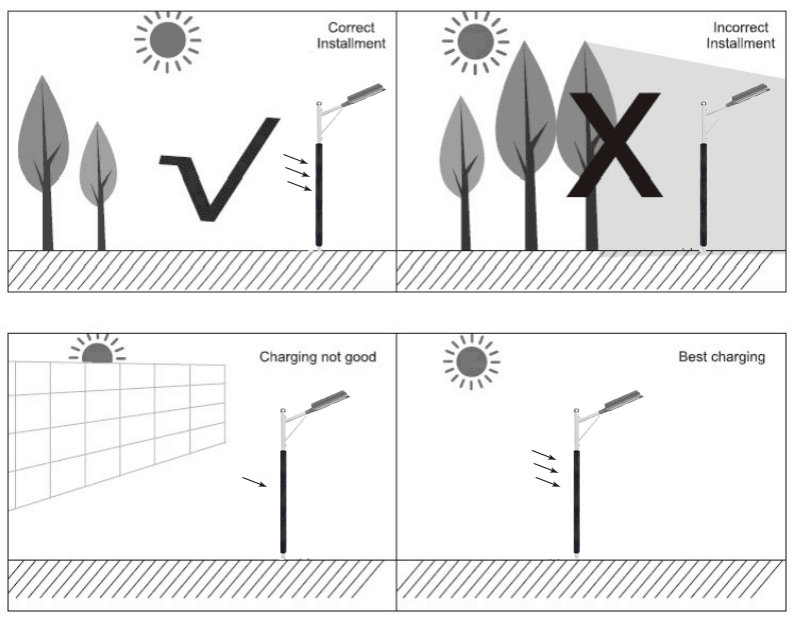

>> Product Operate Guide
All in two solar powered street light is a semi integrated product which requests no cable connection, just plug and play, then secure it on the pole, the light will turn on at night,work according to your preset time, turn off and start charging the lithium battery in the daytime automatically.
