You are here: Home » Products » Solar Street Light » All in Two Solar Street Light » DS-AIT1-S All in Two Solar LED Street Light for Highways And Main Roads

DS-AIT1-S All in Two Semi Integrated Solar LED Street Light with Optional Induction Sensor (80W-100W-120W-150W-200W)

DS-AIT1-S All in Two Solar LED Street Light for Highways And Main Roads

The DS-AIT1-S semi integrated solar street light is designed for highways, urban roads, main roads, and expressways where high-powered lighting is needed due to heavy traffic. The power of the AIT1-S ranges from 50W to 100W and can be customized with a motion sensor or CCTV camera if needed.

Quantity:
Availability:





Inquire Add to Basket

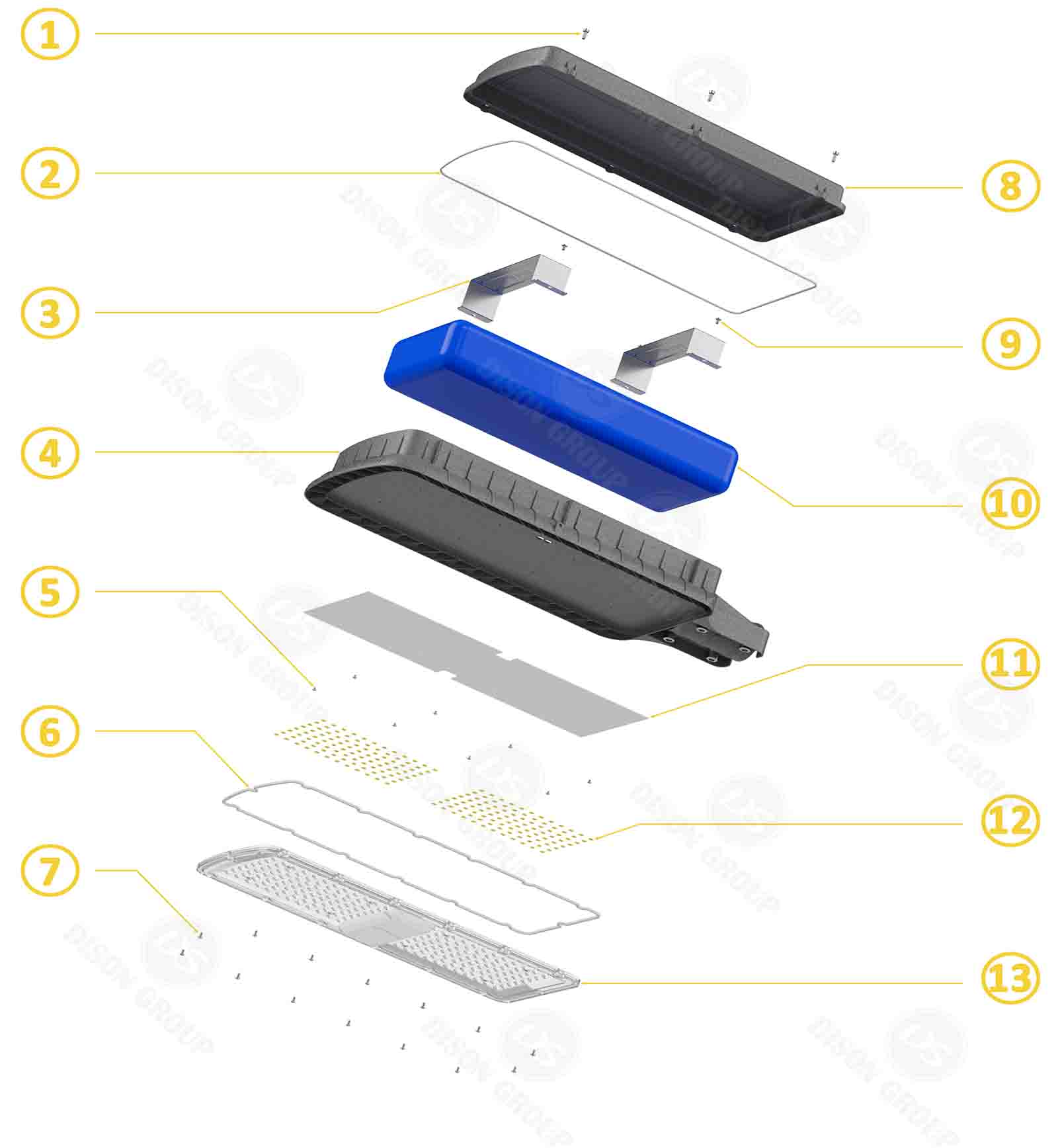

>> Explosion View

DS-AIT1-S All in Two Semi Integrated Solar LED Street Light with Optional Induction Sensor (80W-100W-120W-150W-200W)-1

Components of DS-AIT1-S solar street lamp
NO.	Item name	NO.	Item name
1	Screw for lamp cover	8	lamp cover
2	waterproof ring	9	Screw for battery clamp
3	battery clamp	10	LifePo4 lithium battery
4	lamp fixture main body	11	PCB board
5	Screws for PCB board	12	LED chips
6	waterproof ring	13	optical lens
7	Screws for optical lens

Optional accessories

Anti-theft thorn

CCTV camera

Anti-bird thorn

PIR sensor

Tilt angle adjustable bracket

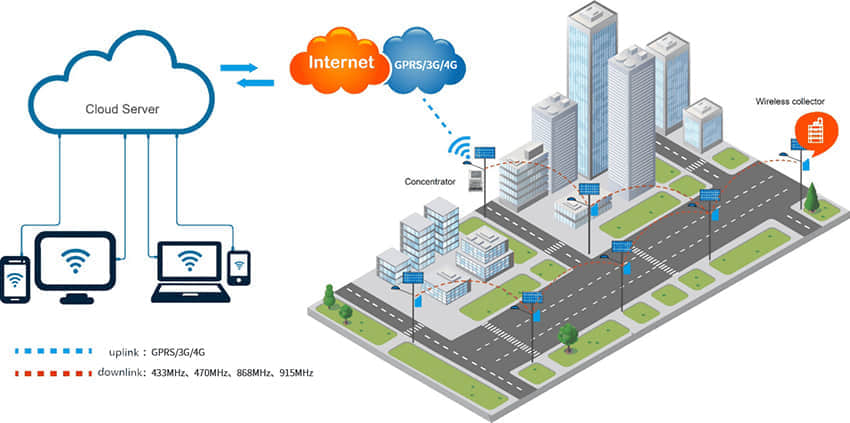

IOT System

DS-AIT1-S All in Two Semi Integrated Solar LED Street Light with Optional Induction Sensor (80W-100W-120W-150W-200W) (3)

>> Technical Parameters

Model	DS-AIT1-S 50W-100W ALL IN TWO SOLAR STREET LIGHT
LED LIGHT	100pcs 3030 LED chips,≥130lm/w, CRI≥70,3000-6500K customizable
Solar panel	100-200W
Lithium battery	Maximum 896WH
Solar controller（PWM/MPPT）	10-20A
Product size	550230113mm
Suggested install height	7-12M
Lighting mode	10-12hours per day/ can be customized
IP rate/IK	IP66/IK08
Working temp	-25℃ to 65℃
Backups	＞3days
Lifespan	＞10 years
Warranty period	＞3 years
Motion sensor	Optional
CCTV camera	Optional
All components can be adjusted according to customer's needs

DIALUX SIMULATION TO SEE ACTUAL PERFORMANCE

AIT-5-8M

AIT-9-12M

Factory Overview

factory overview

light pole and LED light workshop

lithium battery and solar panel workshop

>> Product Advantages

HIGH STRENGTH FRAME

Apply die-cast aluminum as the frame of solar induction street light to get lessened weight, reinforced structural strength to support big lithium battery, improved heat dissipation at the same time, and offer great plasticity and excellent corrosion resistance.

LED CHIPS FROM TOP 5 MANUFACTURERS

Leading LED chip brands such as Philips, Cree, Bridgelux, and San'an offer high efficiency chips with over 170LM/W. These chips are used in our solar LED street light along with high-quality optical lenses with a transparency of at least 90%. When combined together, the efficiency of entire LED lamp can achieve over 130LM/W for 3030 LED chips and 150LM/W for 5050 LED chips.

UNIQUE LIGHTING DISTRIBUTION

Patented bat-wing lighting distribution design in LED solar integrated light ensures consistent and uniform lighting performance, covering 30% more areas than normal LED street lights. A variety of lighting solutions are offered to meet customer needs.

EASY INSTALLATION

The plug & play design of our modular solar lighting system eliminates the need for laying underground cables and professional electricians during installation. This not only saves costs for installation but also allows for flexibility in the size of the solar panels. With a separated solar panel design, we can use larger solar panel to meet the charging needs of big lithium batteries that support high-power lamps.

FLEXIBLE COLLOCATION

Various accessory parts such as motion sensors, surveillance cameras, and smart lighting systems are available as optional features for the AIT solar street light, aimed at enhancing energy efficiency and ensuring safety.

>> Product Applications

1. Expressway

Expressways connecting different cities always experience heavy traffic flow at fast speed, requiring high levels of brightness during the night. While all-in-one solar street lights with small solar panels and motion sensors may not be suitable for this scenario, all-in-two induction solar street light from DS Group are the perfect solution. These lights are designed to meet the high output needs of expressways, with ample space for solar panels and batteries to ensure long-lasting performance.

2. Highway

Highway lighting is essential for ensuring the safety of drivers traveling at high speeds during the night. It serves a much larger purpose than street lighting in urban areas. The brightness of highway lighting must be greater, the area it covers needs to be larger, and it should provide even and uniform lighting without causing glare.

3. Main road in the city

Busy streets are often crowed with people even late at night. To prevent car accidents, it is important for the street lighting to remain bright throughout the night. However, main roads in the city have limited space for installing poles on both sides, so the lighting needs to cover a wider area. In these situations, Dison Group recommends using All in two solar street lights.

>> Product Operate Guide

DS-AIT1-S All in Two Semi Integrated Solar LED Street Light with Optional Induction Sensor (80W-100W-120W-150W-200W) (1)

The All in Two solar street light is a semi integrated solution that requires no wiring. Simply plug it in and secure it to the pole. The light will turn on at night, operate based on your programmed schedule, and recharge the lithium battery during the day automatically.

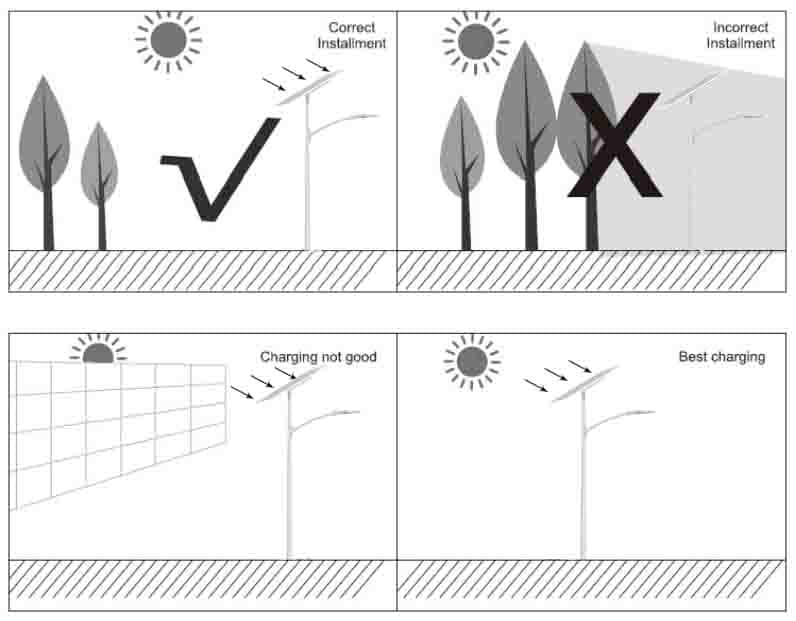

For optimal performance, it is advised to place the solar panels in a horizontal position where they can receive ample sunlight and direct exposure to the sun. It is important to make sure that there are no obstructions within a 120° range of the panels.
