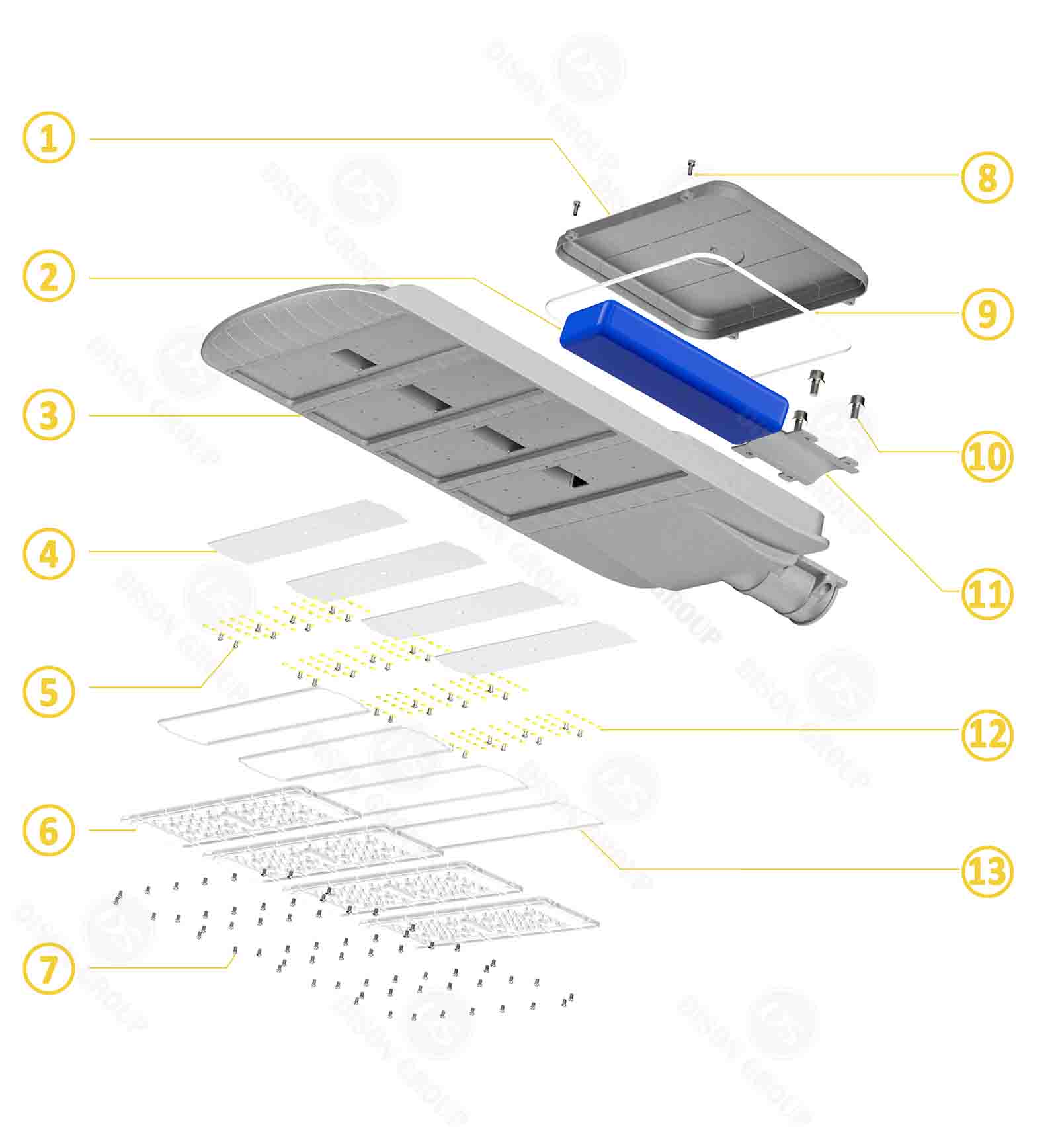

>> Explosion View
Components of solar street lamp | |||
NO. | Item name | NO. | Item name |
1 | lamp cover | 8 | Screw forlamp cover |
2 | LifePo4 lithium battery | 9 | waterproofring |
3 | lamp fixture main body | 10 | Screw for socket |
4 | PCB board | 11 | Socket |
5 | Screws for PCB board | 12 | LED chips |
6 | optical lens | 13 | waterproof ring |
7 | Screws for optical lens | ||
Optional accessories
Anti-theft thorn
CCTV camera
Anti-bird thorn
PIR sensor

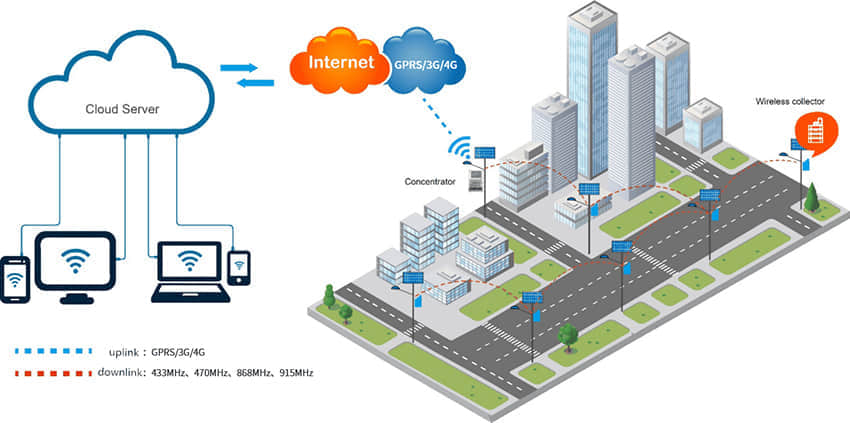

IOT System
>> Technical Parameters

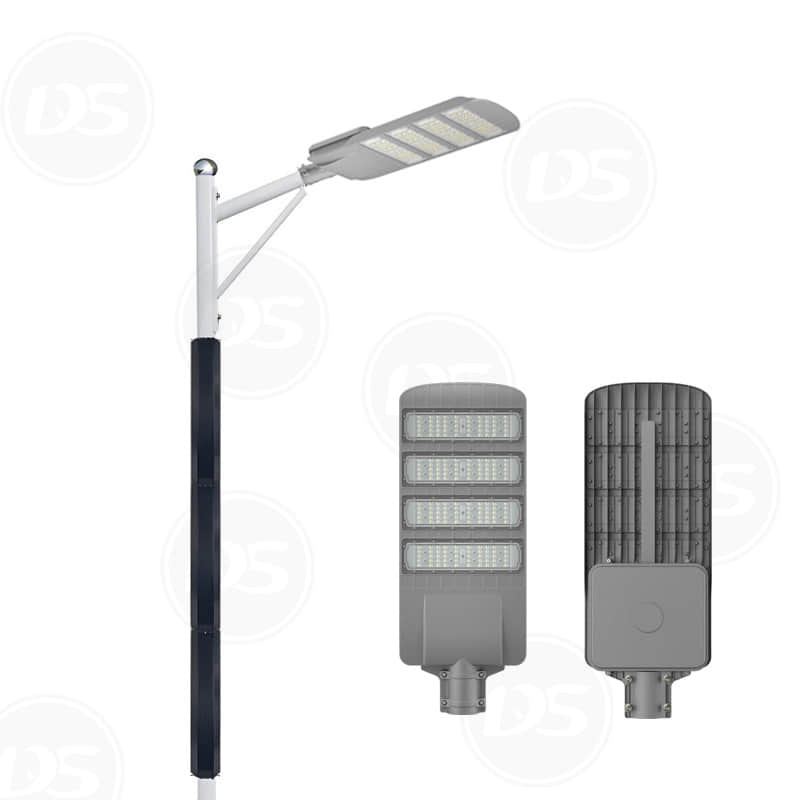

Model | DS-VSSL3 40W-70W VERTICAL SOLAR STREET LIGHT |
LED LIGHT | 50pcs 3030 LED chips,≥130lm/w, CRI≥70,3000-6500K customizable |
Solar panel | customized |
Lithium battery | customized |
Solar controller（PWM/MPPT） | 10-20A |
Product size | 538*270*90mm |
Suggested install height | 5-8M |
Lighting mode | 10-12hours per day/ can be customized |
IP rate/IK | IP66/IK08 |
Working temp | -25℃ to 65℃ |
Backups | ＞3days |
Lifespan | ＞10 years |
Warranty period | ＞3 years |
Motion sensor | Optional |
CCTV camera | Optional |
All components can be adjusted according to customer's needs | |
DIALUX SIMULATION TO SEE ACTUAL PERFORMANCE
Factory Overview
>> Product Advantages
| EFFICIENT ENERGY UTILIZATION The vertical solar panel module adopts a unique columnar design that can receive sunlight from all directions; it is equipped with high-performance solar cells and has excellent photoelectric conversion efficiency, providing sufficient power for LED street lights. |
| ANTI-FOULING AND SELF-CLEANING The surface of the vertical solar panel module is not easy to accumulate dust and dirt. Due to its vertical installation method, dust is difficult to adhere to under the action of gravity, and it is easier to be washed away when it is washed by rain. Maintain high power generation performance for a long time. |
| STRONG COLUMNAR STRUCTURE The columnar structure of the street lamp gives the entire lamp good stability and wind resistance. The columnar solar panel module is closely integrated with the street lamp pole. Compared with traditional flat solar street lamps, its force-bearing area is smaller and the wind resistance coefficient is lower. |
| MPROVED AESTHETICS The appearance of the vertical solar panel module complements the shape of the street light pole, making the overall shape of the street light more beautiful. This vertical design line is simple and smooth, which can better integrate with the city's architectural style and road landscape. |
| INTELLIGENT LIGHTING CONTROL Equipped with an intelligent dimming system, it can automatically adjust the brightness according to the ambient light intensity; it can also adjust the brightness according to different time periods and traffic flow. This automatic light control function not only provides convenience, but also effectively saves energy. |
>> Product Applications
1. Pedestrian Street and Commercial Street
Pedestrian streets and commercial streets have high requirements for the aesthetics and lighting quality of street lamps. The columnar solar LED street lamp has a simple and beautiful shape, which blends in with the commercial environment. Moreover, its vertical solar panel module can be flexibly installed according to the architectural style and layout of the shops on both sides of the street, without taking up too much ground space.
2. City Park
In urban parks, columnar solar LED street lights can be widely used for lighting roads, squares and leisure areas. The environment of the park is diverse, with open lawns, woods and lakes. Columnar solar LED street lights can adapt to this complex terrain and be installed along the park's trails to provide visitors with safe nighttime lighting. Moreover, because it uses clean energy, it will not pollute the park's ecological environment.
3. Industrial Park and Parking Lot
In industrial parks and factories, vertical solar LED street lights can be used for lighting park roads and parking lots. These areas are usually large and require long-term lighting. Columnar solar LED street lights can utilize the open space in the factory and collect enough solar energy by rationally arranging solar panel modules. At the same time, it can be combined with the intelligent control system of the factory to achieve remote control and energy management, and improve energy utilization efficiency.

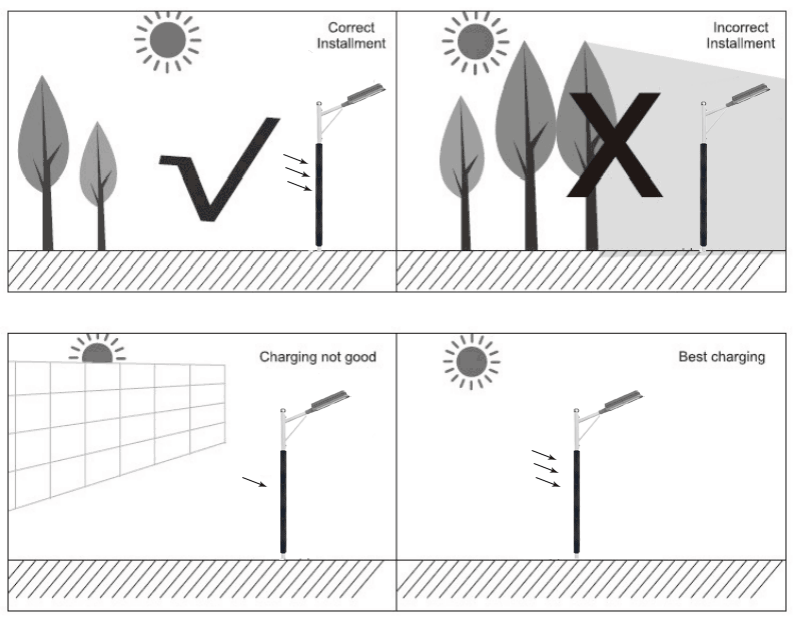

>> Product Operate Guide
All in two solar powered street light is a semi integrated product which requests no cable connection, just plug and play, then secure it on the pole, the light will turn on at night,work according to your preset time, turn off and start charging the lithium battery in the daytime automatically.
