>> Explosion View
Components of solar street lamp | |||
NO. | Item name | NO. | Item name |
1 | Screw for lamp cover | 8 | lamp cover |
2 | waterproof ring | 9 | Screw for battery clamp |
3 | battery clamp | 10 | LifePo4 lithium battery |
4 | lamp fixture main body | 11 | PCB board |
5 | Screws for PCB board | 12 | LED chips |
6 | waterproof ring | 13 | optical lens |
7 | Screws for optical lens | ||
Optional accessories
Anti-theft thorn
Anti-bird thorn
CCTV camera
PIR sensor

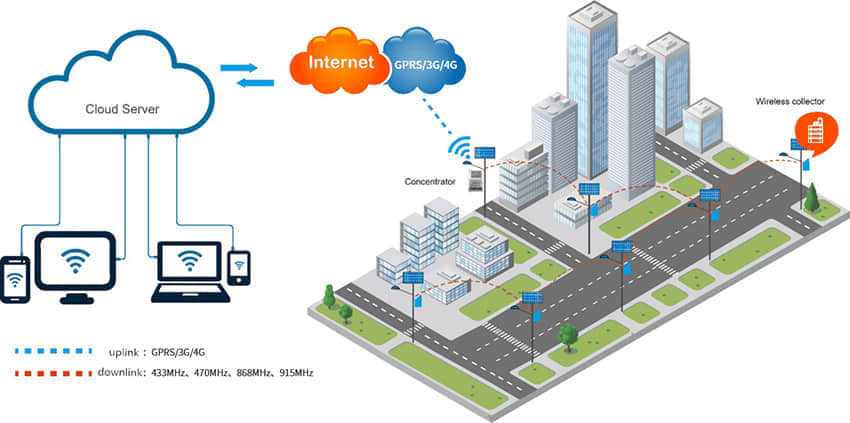

IOT System
>> Technical Parameters
Model | DS-VSSL1 100W-300W VERTICAL SOLAR STREET LIGHT |
LED LIGHT | 192pcs 3030 LED chips,≥130lm/w, CRI≥70,3000-6500K customizable |
Solar panel | customized |
Lithium battery | customized |
Solar controller（PWM/MPPT） | 10-20A |
Product size | 650*260*118mm |
Suggested install height | 7-12M |
Lighting mode | 10-12hours per day/ can be customized |
IP rate/IK | IP66/IK08 |
Working temp | -25℃ to 65℃ |
Backups | ＞3days |
Lifespan | ＞10 years |
Warranty period | ＞3 years |
Motion sensor | Optional |
CCTV camera | Optional |
All components can be adjusted according to customer's needs | |
DIALUX SIMULATION TO SEE ACTUAL PERFORMANCE
Factory Overview
>> Product Advantages
| EASY INSTALLATION AND MAINTENANCE No need to install the bracket for solar panels especially, just sleeve the solar panels into the pole and fix them with several screws, and save the cost for renting truck crane to clean solar panels on the top of pole, just a besom with extended bar is enough during maintenance. |
| IMPROVED AESTHETICS This groundbreaking idea elevates solar-powered street lighting to a whole new level. More than just a simple light fixture, the Solar Cylinder Street Light Post is a work of art that showcases the latest in engineering technology. |
| BETTER RESISTANCE TO WIND Thanks to its unique design, which warp the solar panels around the light pole, it significantly reduces the windward area, thus it can better resistant to heavy wind, and maintain a better safety factor. |
| PROTECTION AGAINST SNOW AND SAND Different from traditional solar panels mounted on the top of pole, the vertical warped solar panel can greatly reduce the possibility of collection of snow or sand on the surface of solar panels. |
| FLEXIBLE COLLOCATION Diversified accessories like Motion sensor, CCTV camera, IOT smart lighting system are optional for this AIT solar street light for energy saving and safety consideration. |
>> Product Applications
1. Expressway
Expressways connecting different cities always experience heavy traffic flow at fast speed, requiring high levels of brightness during the night. While all-in-one solar street lights with small solar panels and motion sensors may not be suitable for this scenario, all-in-two induction solar street light from DS Group are the perfect solution. These lights are designed to meet the high output needs of expressways, with ample space for solar panels and batteries to ensure long-lasting performance.
2. Highway
Highway lighting is essential for ensuring the safety of drivers traveling at high speeds during the night. It serves a much larger purpose than street lighting in urban areas. The brightness of highway lighting must be greater, the area it covers needs to be larger, and it should provide even and uniform lighting without causing glare.
3. Main road in the city
Such roads are usually full of crowded people even at the late night, to avoid car accidents, the lighting on the road should keep working at high power for the whole night,meanwhile, main roads in the city are having limited space for poles installing on two sides, which requests lighting installed to have a wider covering area. For such cases, All in two solar street lights are recommended from Dison group.

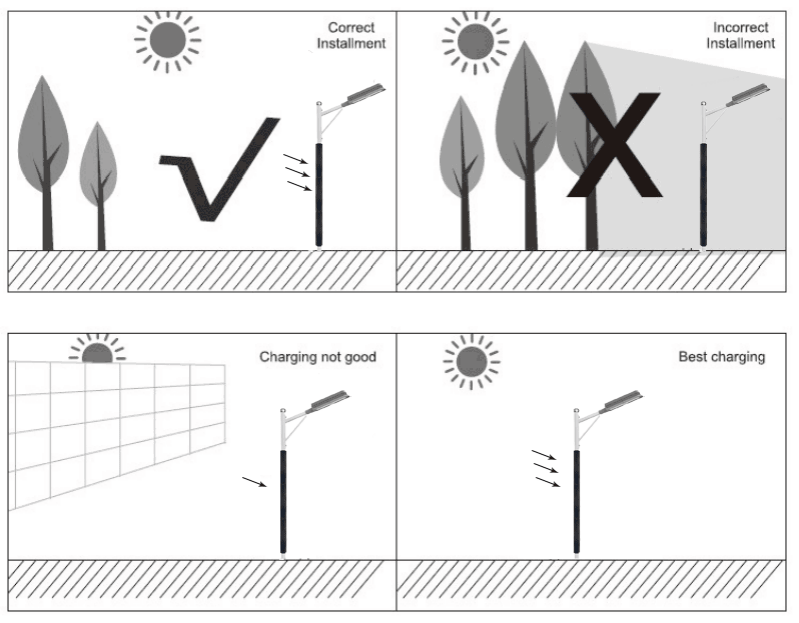

>> Product Operate Guide
All in two solar powered street light is a semi integrated product which requests no cable connection, just plug and play, then secure it on the pole, the light will turn on at night,work according to your preset time, turn off and start charging the lithium battery in the daytime automatically.
