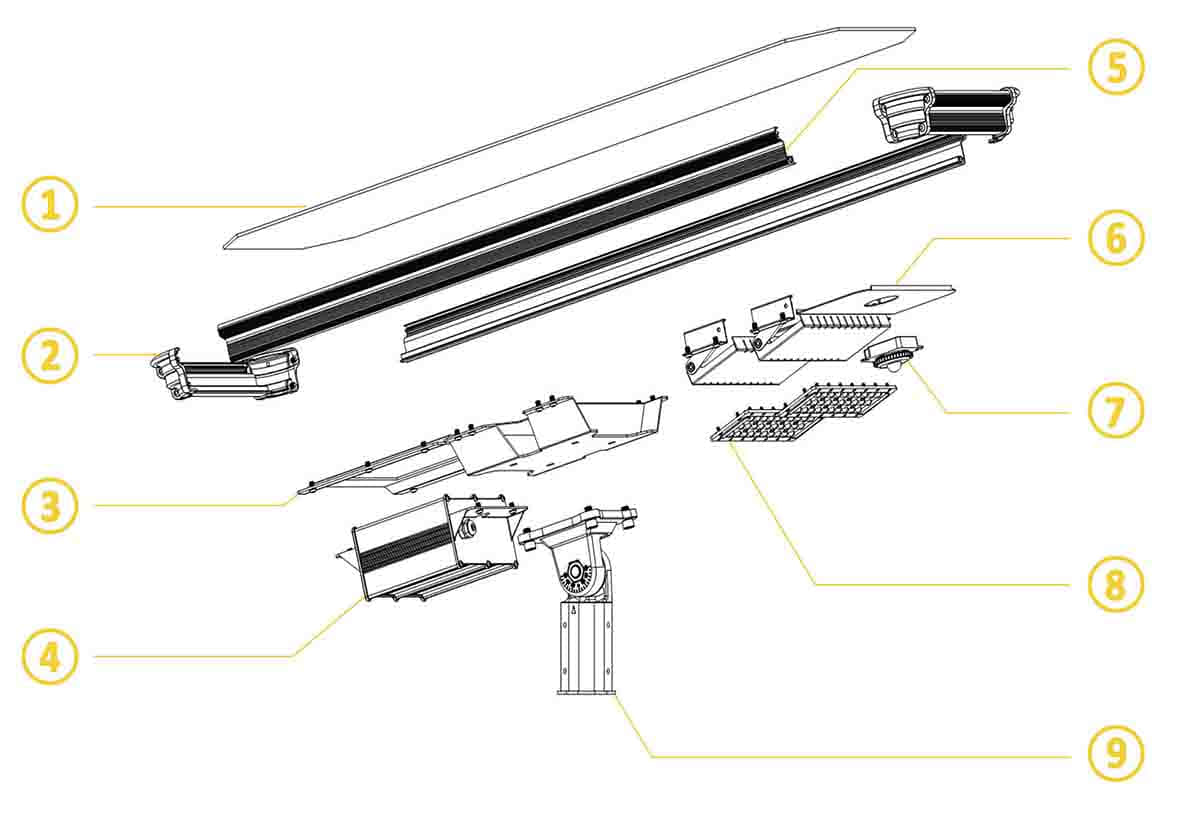

>> Explosion View
Components of DS-AIO5 solar street light | |||
NO. | Item name | NO. | Item name |
1 | Solar panel | 6 | Steel plate for sensor |
2 | Aluminium frame | 7 | Motion sensor |
3 | Battery holder | 8 | LED module |
4 | LiFePo4 lithium box | 9 | Mounting bracket |
5 | Aluminium frame | 10 | |
Optional accessories
Anti-theft thorn
CCTV camera
Anti-bird thorn
PIR sensor
Adjustable bracket

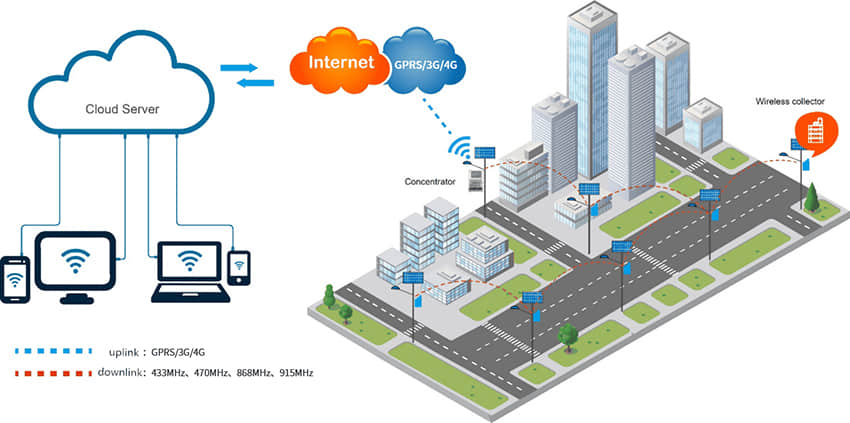

IOT System
>> Technical Parameters
Model | 20W ALL IN ONE SOLAR STREET LIGHT | 30W ALL IN ONE SOLAR STREET LIGHT | 40W ALL IN ONE SOLAR STREET LIGHT | 50W ALL IN ONE SOLAR STREET LIGHT | 60W ALL IN ONE SOLAR STREET LIGHT | 75W ALL IN ONE SOLAR STREET LIGHT |
LED LIGHT | 1 LED module, ≥130lm/w, CRI≥70, 3000-6500K customizable | 1 LED module, ≥130lm/w, CRI≥70, 3000-6500K customizable | 1 LED module, ≥130lm/w, CRI≥70, 3000-6500K customizable | 1 LED module, ≥130lm/w, CRI≥70, 3000-6500K customizable | 1 LED module, ≥130lm/w, CRI≥70, 3000-6500K customizable | 2 LED modules, ≥130lm/w, CRI≥70, 3000-6500K customizable |
Solar panel | 45W, mono-crystalline,≥18% efficiency | 60W, mono-crystalline,≥18% efficiency | 80W, mono-crystalline, ≥18% efficiency | 100W, mono-crystalline, ≥18% efficiency | 120W, mono-crystalline, ≥18% efficiency | 150W, mono-crystalline, ≥18% efficiency |
Lithium battery | 192WH,lifepo4 lithium battery | 256WH,lifepo4 lithium battery | 384WH,lifepo4 lithium battery | 480WH,lifepo4 lithium battery | 512WH,lifepo4 lithium battery | 640WH,lifepo4 lithium battery |
Solar controller（PWM/MPPT） | 10-20A | |||||
Product size | 877*367*50mm | 1117*367*50mm | 1322*367*50mm | 1672*417*50mm | 1832*417*50mm | 1792*517*50mm |
Suggested install height | 4-6 Meters | 5-7 Meters | 6-8 Meters | 7-9 Meters | 8-10 Meters | 9-12 Meters |
Lighting mode | 10-12hours per day/ can be customized | |||||
IP rate/IK | IP66/IK08 | |||||
Working temp | -25℃ to 65℃ | |||||
Backups | ＞3days | |||||
Lifespan | ＞10 years | |||||
Warranty period | ＞3 years | |||||
Motion sensor | Optional | |||||
CCTV camera | Optional | |||||
All components can be adjusted according to customer's needs | ||||||
DIALUX SIMULATION TO SEE ACTUAL PERFORMANCE
Factory Overview
>> Product Advantages
| EASY INSTALLATION Easy installation has realized thanks to its unique integrated design which have already been pre-wired at our workshop,meanwhile, long lifespan of solar panel(≥25years), LED light source(≥10years) and battery(≥10years) makes maintenance unnecessary for at least 10 years. |
| HIGH STRENGTH FRAME Adopt 6061 aluminum as the frame of all in one solar led street light,which can not reduce the weight of LED light body, but also ensure the Tensile Strength ≥180 MPa and yield strength ≥110 MPa. At the same time, It has good plasticity and excellent corrosion resistance characteristics. |
| LED CHIPS FROM TOP 5 MANUFACTURERS Making use of high brightness LED chips from reputable LED chips manufacturers like Lumileds, Cree, and San'an, the chips efficiency can achieve more than 170LM/W. The lighting efficiency of whole 3 in 1 solar powered LED street lights can reach 130LM/W for 3030 LED chips and 150LM/W for 5050 LED chips after equipping with imported optical lenses with a transparency of at least 90%. |
| COST SAVING All in one designed solar street light integrates the solar panel, lithium battery, solar controller, and LED light together as one unit, no wiring needed at customer’s side, no laying of underground cables, no Professional electrician required for installation, help customer save cost not only on labor cost but also on transportation cost. |
| EASY MAINTENANCE Easy replacement for LED modules,solar battery and solar controller by its unique assembling design, meanwhile, solar panels can absorb solar energy bi-facially optimizing the charging efficiency. |
| ADJUSTABLE BRACKET Flexible mounting bracket is applied for various installation environment, the tilt angle of which can be adjusted from 0°to 90°,at the same time, it can be mounted on the top of light pole as well as the arm of pole which is usually used to exchange existing AC lights. |
>> Product Applications
1. Village road lighting
Village road lighting differs significantly from common urban road lighting where the street lights need to work at high brightness for a long time due to high rate of traffic flow. Village roads are usually a litter narrower with limited traffic flow, it is totally a waste to always keep lights working at high power. Meanwhile, the remote villages are usually with poor fundamental infrastructures and have no access to power grid, thus Dison Pluto solar powered street light becomes an ideal lighting solution for such using environment.
2. Factory/School/Park/Jetty/Parking lots/Perimeter fence
Such using environment are having one common feature that they install the lights primarily for safety consideration, and qty of solar lights needed are not too many, so laying cables to power grid is not economic for these customers. Stand alone solar light with motion sensor or CCTV camera from Dison Group becomes an ideal choice.
3. Passways
Properly lighting up passways can ensure the safety of residents during their way home after dark, simple installation of all in one solar street light at regular intervals can perfectly make you satisfied with the lighting performance.
4. Streets in the city
With the development of solar panel and battery included in the solar street light, more and more solar powered all in one solar LED light are applied in the city, cause the efficiency of solar panels has already increased a lot in the past few years, which can fully charge the battery in limited time, at the same time, the lifepo4 battery is widely used in solar lights which are safer with longer lifespan, can also ensure the backup days for lights in continues rainy days.

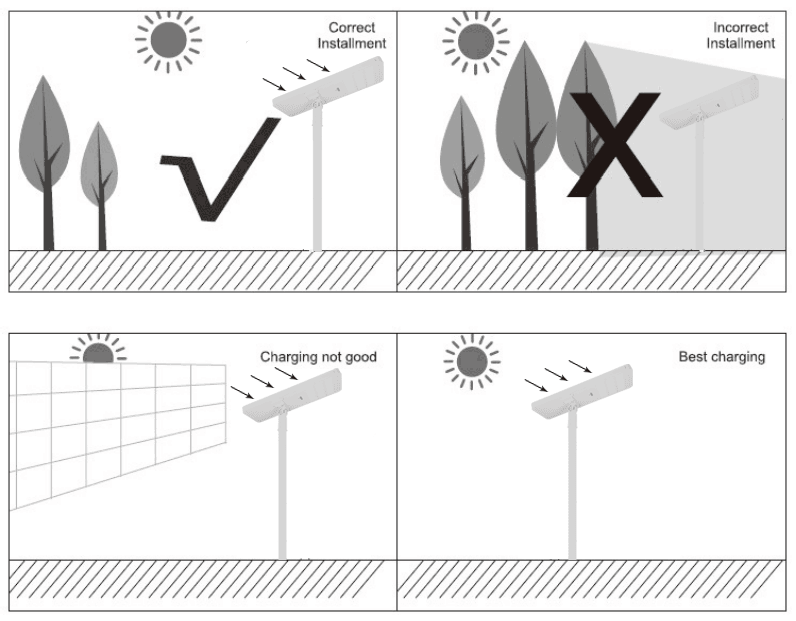

>> Product Operate Guide
