>> Technical Parameters
Optional accessories
Anti-theft thorn
CCTV camera
Anti-bird thorn
PIR sensor
Adjustable bracket

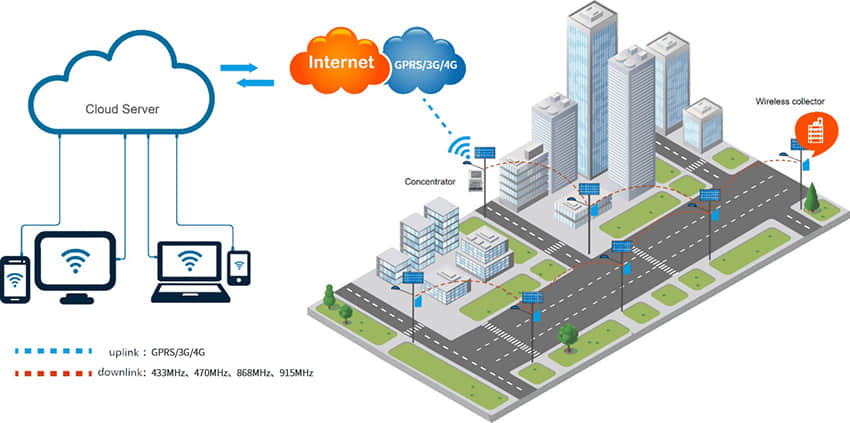

IOT System
Model | 20W ALL IN ONE SOLAR STREET LIGHT | 30W ALL IN ONE SOLAR STREET LIGHT | 40W ALL IN ONE SOLAR STREET LIGHT | 50W ALL IN ONE SOLAR STREET LIGHT | 60W ALL IN ONE SOLAR STREET LIGHT | 70W ALL IN ONE SOLAR STREET LIGHT |
LED LIGHT | 1 LED modules, ≥130lm/w, CRI≥70, 3000-6500K customizable | 1 LED module, ≥130lm/w, CRI≥70, 3000-6500K customizable | 1 LED module, ≥130lm/w, CRI≥70, 3000-6500K customizable | 1 LED module, ≥130lm/w, CRI≥70, 3000-6500K customizable | 1 LED module, ≥130lm/w, CRI≥70, 3000-6500K customizable | 2 LED module, ≥130lm/w, CRI≥70, 3000-6500K customizable |
Solar panel | 40W, mono-crystalline,≥18% efficiency | 60W, mono-crystalline,≥18% efficiency | 80W, mono-crystalline,≥18% efficiency | 100W, mono-crystalline, ≥18% efficiency | 120W, mono-crystalline, ≥18% efficiency | 140W, mono-crystalline, ≥18% efficiency |
Lithium battery | 192WH,lifepo4 lithium battery | 256WH,lifepo4 lithium battery | 384WH,lifepo4 lithium battery | 480WH,lifepo4 lithium battery | 512WH,lifepo4 lithium battery | 640WH,lifepo4 lithium battery |
Solar controller（PWM/MPPT） | 10-20A | |||||
Product size | 828*286*43mm | 1078*355*43mm | 1308*355*43mm | 1470*422*43mm | 1618*426*50mm | 1718*426*50mm |
Suggested install height | 4-6 Meters | 5-7 Meters | 6-8 Meters | 7-9 Meters | 8-10 Meters | 9-11 Meters |
Lighting mode | 10-12hours per day/ can be customized | |||||
IP rate/IK | IP66/IK08 | |||||
Working temp | -25℃ to 65℃ | |||||
Backups | ＞3days | |||||
Lifespan | ＞10 years | |||||
Warranty period | ＞3 years | |||||
Motion sensor | Optional | |||||
CCTV camera | Optional | |||||
All components can be adjusted according to customer's needs | ||||||
DIALUX SIMULATION TO SEE ACTUAL PERFORMANCE
Factory Overview
>> Product Advantages
| HIGH STRENGTH FRAME The IP66 waterproof body of this integrated solar LED street light is made of high strength 6061 aluminum which can not only ensure the Tensile Strength ≥180 MPa and yield strength ≥110 MPa, but also reduce the total weight of AIO solar street light, thus transportation cost can be saved for our customers, Meanwhile, this aluminum solar LED light has excellent characteristic of corrosion resistance. |
| LED CHIPS FROM TOP 5 MANUFACTURERS Making use of high brightness LED chips from reputable LED chips manufacturers like Lumileds, Cree, and San'an, the chips efficiency can achieve more than 170LM/W. When equipped with imported optical lenses with a transparency of at least 90%, the overall efficiency of our solar powered LED street lights can reach 130LM/W for 3030 LED chips and 150LM/W for 5050 LED chips. |
| UNIQUE LIGHTING DISTRIBUTION Patent designed bat-wing lighting design ensures not only consistent and even light distribution,but also enough brightness in central area, at the same time, covering a larger area than standard solar LED street lights. A variety of lighting distribution options are offered to meet different customer needs. |
| EASY INSTALLATION All in one designed solar street light integrates the solar panel, lithium battery, solar controller, and LED light together as one unit, no cable wiring needed at customer’s side, no laying of underground cables, no Professional electrician required for installation, help customer save cost not only on labor but also on transportation. |
| FLEXIBLE COLLOCATION Automatically turn on/off system after installation, also Motion sensor and CCTV camera are optional for this AIO solar street light for energy saving and safety consideration. |
>> Product Applications
1. Village road lighting
In rural areas like small villages, the road lighting for village differs greatly from urban areas, where street lights need to be turned on for long periods at high brightness due to its high traffic flow, but village roads are narrower with less traffic, so It is not necessary to keep lights at full power all the time. Additionally, many remote villages are lacking of basic infrastructure and access to the power grid. Llaying cables underground specially for roads lighting are not economic. This is where the Dison AIO2 solar powered integrated LED street light is a perfect solution for lighting in these areas.
2. Factory/School/Park/Jetty/Parking lots/Perimeter fence
Such using environment are having one common feature that they install the lights primarily for safety consideration, and qty of solar lights needed are not too many, so laying cables to power grid is not economic for these customers. Stand alone solar light with motion sensor or CCTV camera from Dison Group becomes an ideal choice.
3. Passways
Properly lighting up passways can ensure the safety of residents during their way home after dark, simple installation of all in one solar street light at regular intervals can perfectly make you satisfied with the lighting performance.
4. Streets in the city
With the development of solar panel and battery included in the solar street light, more and more solar powered all in one solar LED light are applied in the city, cause the efficiency of solar panels has already increased a lot in the past few years, which can fully charge the battery in limited time, at the same time, the lifepo4 battery is widely used in solar lights which are safer with longer lifespan, can also ensure the backup days for lights in continues rainy days.

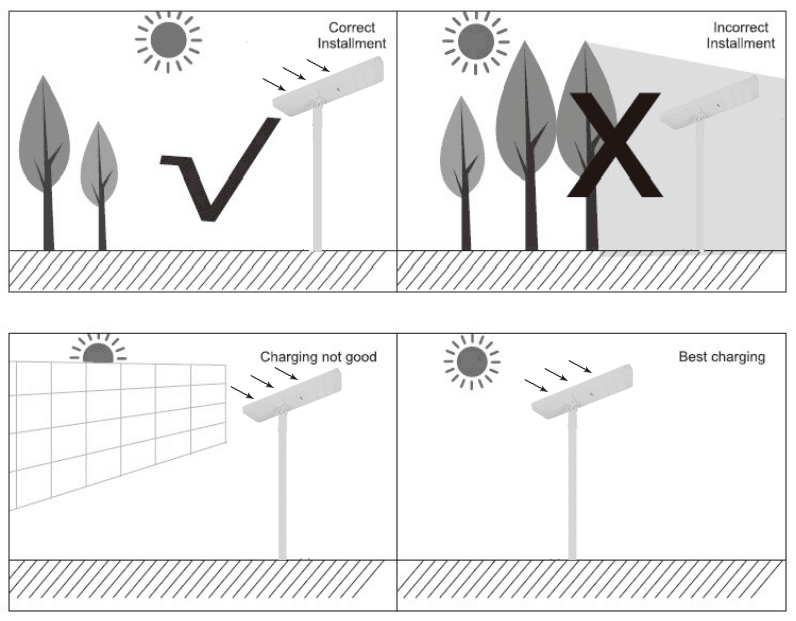

>> Product Operate Guide
