| Quantity: | |
|---|---|
>> Technical Parameters
Model | 30W ALL IN ONE SOLAR GARDEN LIGHT |
LED LIGHT | 2 LED modules, ≥100lm/w, CRI≥70, 3000-6000K customizable |
Solar panel | 30W/5V,mono crystalline,≥16% efficiency |
Lithium battery | 96WH,lifepo4 lithium battery |
Solar controller（PWM/MPPT） | 10A |
Product size | 935*455*230mm |
Suggested install height | 3-6 Meters |
Lighting mode | 10-12hours per day/ can be customized |
IP rate/IK | IP66/IK08 |
Working temp | -25℃ to 65℃ |
Backups | ＞3days |
Lifespan | ＞10 years |
Warranty period | ＞3 years |
Motion sensor | Optional |
DIALUX SIMULATION TO SEE ACTUAL PERFORMANCE
Factory Overview
>> Product Advantages
| HIGH STRENGTH FRAME The IP66 waterproof body of this integrated solar garden lamp is made of high strength 6061 aluminum which can not only ensure the Tensile Strength ≥180 MPa and yield strength ≥110 MPa, but also reduce the total weight of AIO sensor solar garden light, thus transportation cost can be saved for our customers, Meanwhile, this aluminum solar LED light has excellent characteristic of corrosion resistance. |
| LED CHIPS FROM TOP 5 MANUFACTURERS Making use of high brightness LED chips from reputable LED chips manufacturers like Lumileds, Cree, and San'an, the chips efficiency can achieve more than 150LM/W. The lighting efficiency of whole outdoor solar garden lamp can reach 100LM/W for 3030 LED chips and 130LM/W for 5050 LED chips after equipping with imported optical lenses with a transparency of at least 90%. |
| UNIQUE LIGHTING DISTRIBUTION Specially designed bat-wing lighting distribution makes even, uniform light output realized, meanwhile the covering area is at least 30% more compared with normal solar LED garden light. Rich lighting distribution solutions are available according to various demands from the end customer. |
| EASY INSTALLATION All in one designed solar street lamp integrates the solar panel, lithium battery, solar controller, and LED light together as one unit, no cable wiring needed at customer’s side, no laying of underground cables, no Professional electrician required for installation, help customer save cost not only on labor but also on transportation. |
| FLEXIBLE COLLOCATION Motion sensor and CCTV camera are optional for this AIO solar garden light for energy saving and safety consideration. |
>> Product Applications
1. Village road lighting
In rural areas like small villages, the road lighting for village differs greatly from urban areas, where street lights need to be turned on for long periods at high brightness due to its high traffic flow, but village roads are narrower with less traffic, so It is not necessary to keep lights at full power all the time. Additionally, many remote villages are lacking of basic infrastructure and access to the power grid. Llaying cables underground specially for roads lighting are not economic. This is where the Dison AIO7 solar powered integrated LED garden light is a perfect solution for lighting in these areas.
2. Factory/School/Park/Jetty/Parking lots/Perimeter fence
Such using environment are having one common feature that they install the lights primarily for safety consideration, and qty of solar lights needed is not too many, so laying cables to power grid is not economic for the end user. Stand alone solar light with motion sensor or CCTV camera from Dison Group becomes the perfect choice.
3. Passways
Properly lighting up passways can ensure the safety of residents during their way home after dark, simple installation of all in one solar street light at regular intervals can perfectly make you satisfied with the lighting performance.

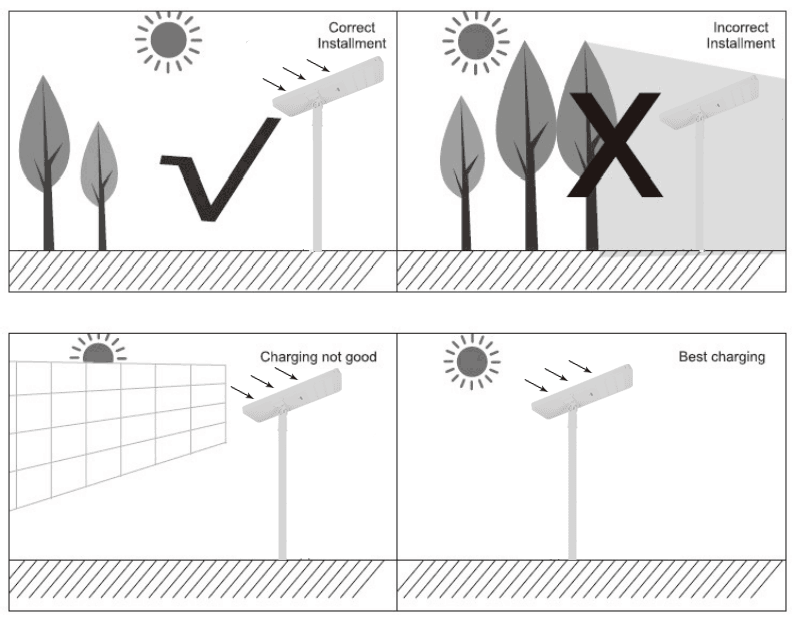

>> Product Operate Guide
