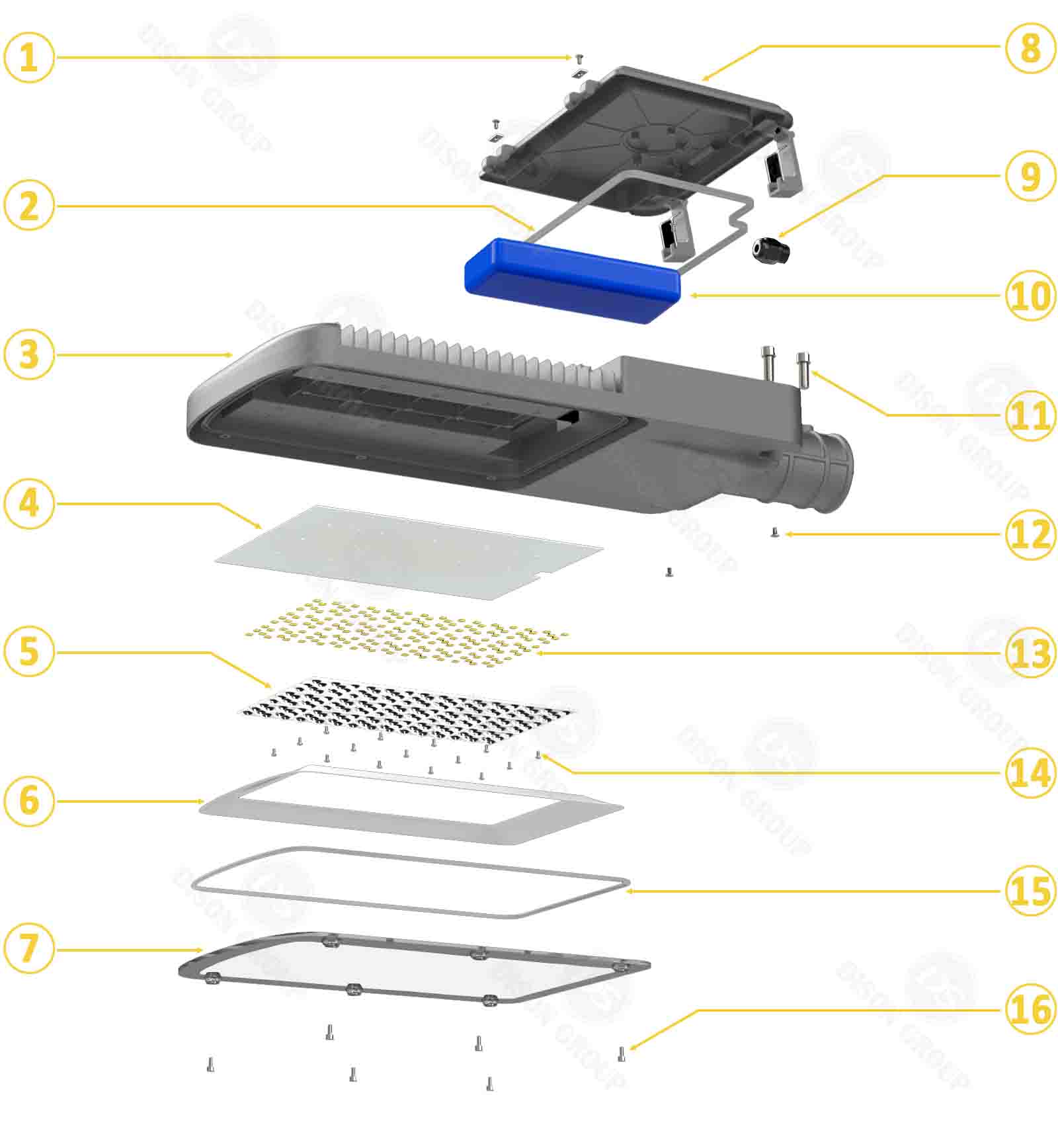

>> Explosion View
Components of DS-AIT5 solar street lamp | |||
NO. | Item name | NO. | Item name |
1 | Screw for lamp cover | 9 | waterproof connector |
2 | waterproof ring | 10 | LifePo4 lithium battery |
3 | lamp fixture main body | 11 | Screw for socket |
4 | PCB board | 12 | Screws for PCB board |
5 | optical lens | 13 | LED chips |
6 | Reflector | 14 | Screws for optical lens |
7 | Glass cover | 15 | waterproof ring |
8 | lamp cover | 16 | Screws for glass cover |
Optional accessories
Anti-theft thorn
CCTV camera
Anti-bird thorn
PIR sensor
Tilt angle adjustable bracket

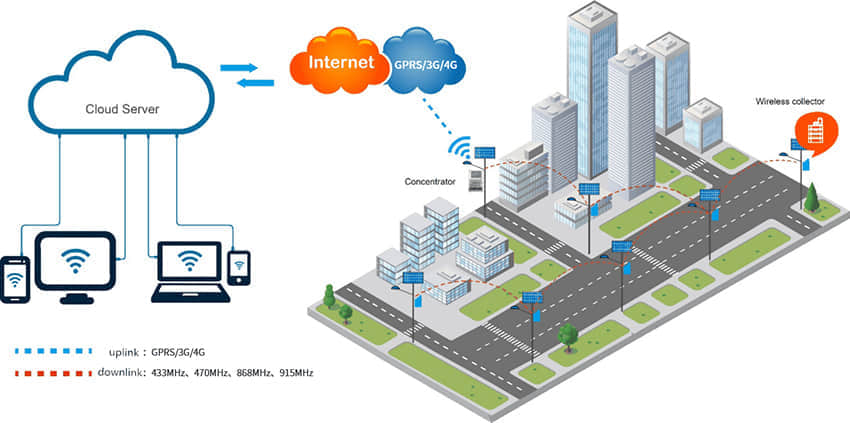

IOT System
>> Technical Parameters
Model | DS-AIT5 10W-20W ALL IN TWO SOLAR STREET LIGHT |
LED LIGHT | 108pcs 3030 LED chips,≥130lm/w, CRI≥70,3000-6500K customizable |
Solar panel | 30-50W |
Lithium battery | Maximum 160WH |
Solar controller（PWM/MPPT） | 10-20A |
Product size | 530*265*80mm |
Suggested install height | 3-6M |
Lighting mode | 10-12hours per day/ can be customized |
IP rate/IK | IP66/IK08 |
Working temp | -25℃ to 65℃ |
Backups | ＞3days |
Lifespan | ＞10 years |
Warranty period | ＞3 years |
Motion sensor | Optional |
CCTV camera | Optional |
| All components can be adjusted according to customer's needs | |
DIALUX SIMULATION TO SEE ACTUAL PERFORMANCE
Factory Overview
>> Product Advantages
| HIGH STRENGTH FRAME Adopt die-cast aluminum as the frame of solar powered street light,which can reduce the weight of lamp fixture, ensure the structure strength to bear heavy lithium battery, increase the speed of heat dissipation, At the same time, It also has good plasticity and excellent corrosion resistance characteristics. |
| LED CHIPS FROM TOP 5 MANUFACTURERS Top LED chip manufacturers like Philips, Cree, Bridgelux, and San'an provide chips with efficiency over 170 lumens per watt. These chips are applied to our automatic sensor solar light along with premium optical lenses that have a transparency of at least 90%. When these components are combined, the overall efficiency of whole LED lamp can reach over 130 LM/W for 3030 LED chips and 150 LM/W for 5050 LED chips. |
| UNIQUE LIGHTING DISTRIBUTION Patent designed bat-wing lighting distribution makes even, uniform light output realized, meanwhile the covering area is at least 30% more compared with normal solar LED street light. Rich lighting distribution solutions are available according to various demands from the end customer. |
| EASY INSTALLATION Our modular solar lighting system features a installation-friendly plug&play design that cancel the requirement for underground cables and professional electricians during setup. This not only reduces installation costs but also provides flexibility during solar panels choosing. By using a separated solar panel design, we can incorporate larger solar panels to meet the charging requirements of large lithium batteries for high-power lamps. |
| FLEXIBLE COLLOCATION Diversified accessories like Motion sensor, CCTV camera, IOT smart lighting system are optional for this AIT solar street light for energy saving and safety consideration. |
>> Product Applications
1. Village road lighting
In small rural villages, road lighting requirements there are different compared to lights in cities. Urban areas require street lights working for long periods at high brightness due to heavy traffic flow. However, village roads are narrower with less traffic, so full power lights are not always necessary. Many remote villages are lack of fundamental infrastructure and access to the power grid, making it much expensive to lay underground cables for scattered lights. The Dison AIO3 3 in 1 stand alone solar powered integrated LED street light becomes an ideal solution for lighting in these areas.
2. Factory/School/Park/Jetty/Parking lots/Perimeter fence
In environments where safety is a top priority after dark, installing security lights is very essential. However, the number of lights needed is usually small, making it uneconomical to lay cables underground connecting to the power grid. So traditional AC lights are not very suitable for these areas. This is where stand-alone solar lights with motion sensors or CCTV cameras from Dison Group are the perfect solution.
3. Passways
Properly lighting up passways can ensure the safety of residents during their way home after dark, or doing small business activities for them. Simple installation of 3 in 1 solar LED street light at regular intervals can perfectly make you satisfied with the lighting performance.

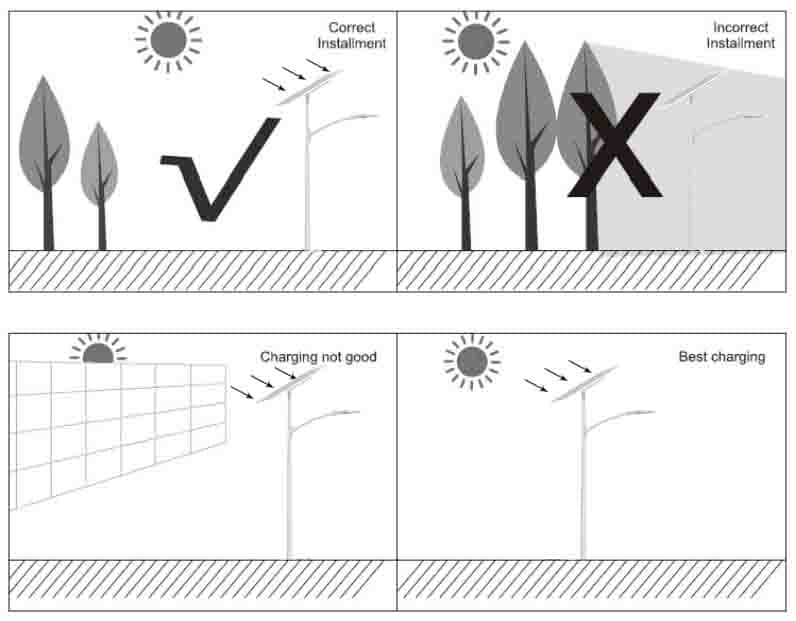

>> Product Operate Guide
