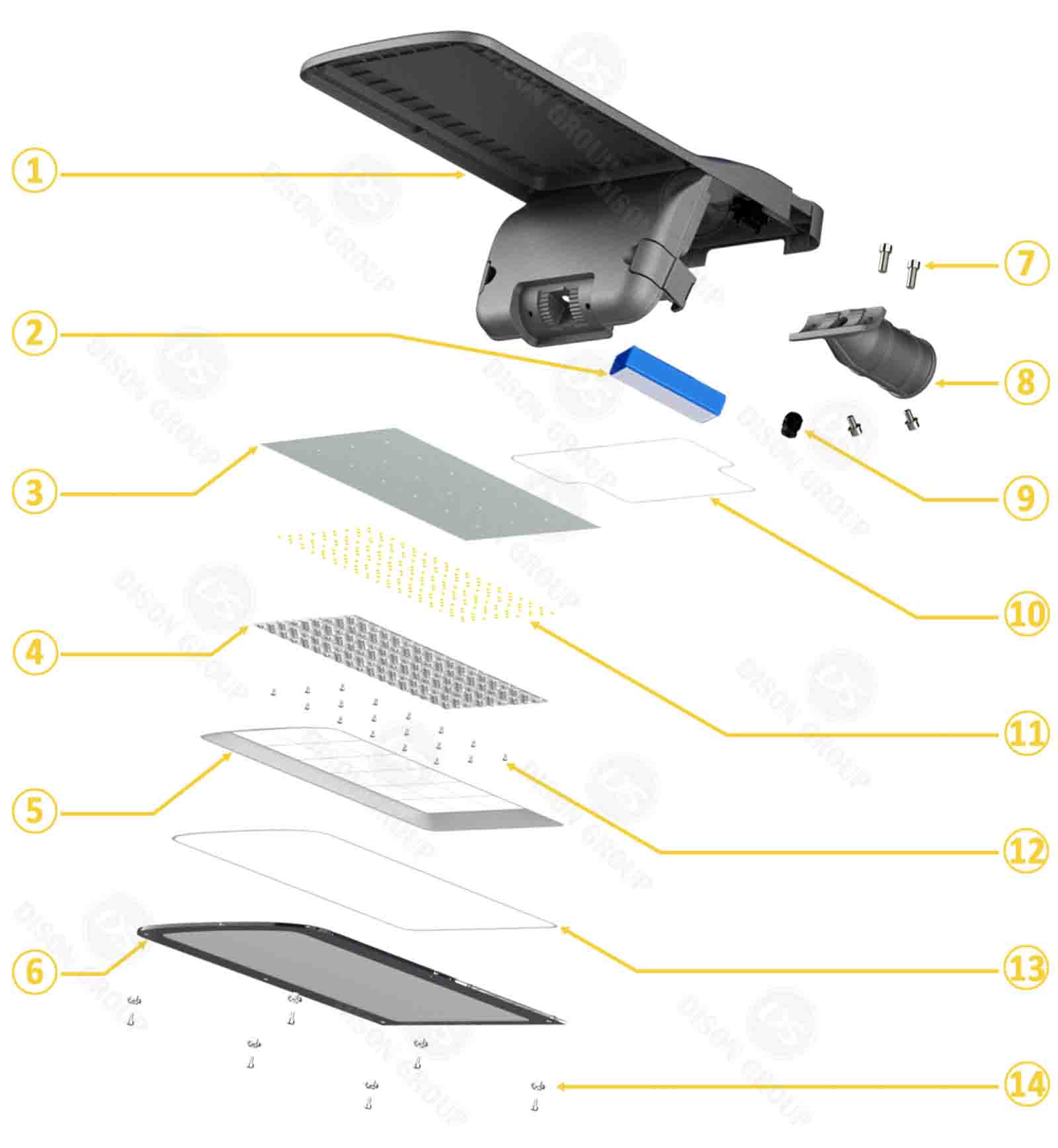

>> Explosion View
Components of DS-AIT4 solar street lamp | |||
NO. | Item name | NO. | Item name |
1 | lamp fixture main body | 8 | Socket |
2 | LifePo4 lithium battery | 9 | waterproof connector |
3 | PCB board | 10 | waterproof ring |
4 | optical lens | 11 | LED chips |
5 | Reflector | 12 | Screws for optical lens |
6 | Lamp cover | 13 | waterproof ring |
7 | Screw for Socket | 14 | Screw for lamp cover |
Optional accessories
Anti-theft thorn
CCTV camera
Anti-bird thorn
PIR sensor
Tilt angle adjustable bracket

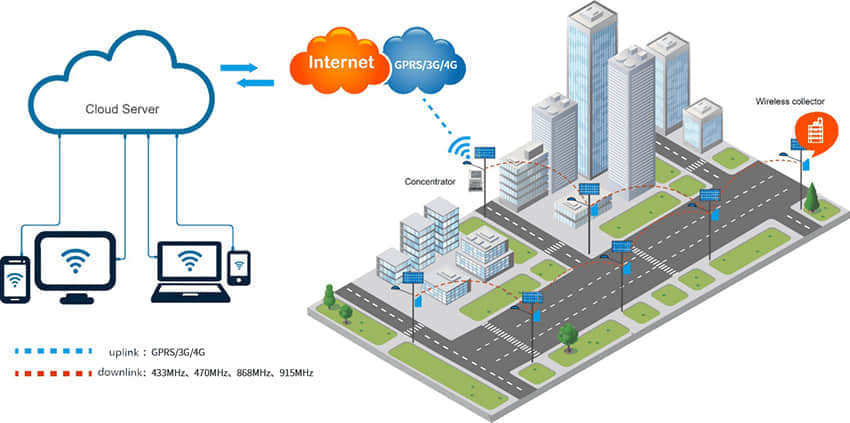

IOT System
>> Technical Parameters

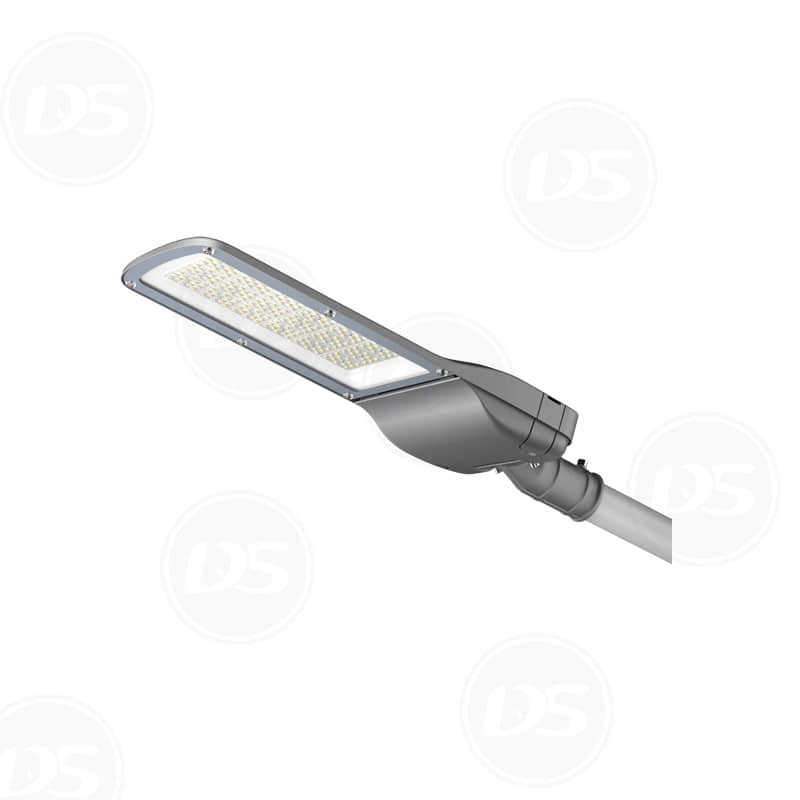

Model | DS-AIT4 10W-20W ALL IN TWO SOLAR STREET LIGHT |
LED LIGHT | 108pcs 3030 LED chips,≥130lm/w, CRI≥70,3000-6500K customizable |
Solar panel | 30-50W |
Lithium battery | Maximum 192WH |
Solar controller（PWM/MPPT） | 10-20A |
Product size | 580*265*90mm |
Suggested install height | 4-7M |
Lighting mode | 10-12hours per day/ can be customized |
IP rate/IK | IP66/IK08 |
Working temp | -25℃ to 65℃ |
Backups | ＞3days |
Lifespan | ＞10 years |
Warranty period | ＞3 years |
Motion sensor | Optional |
CCTV camera | Optional |
| All components can be adjusted according to customer's needs | |
DIALUX SIMULATION TO SEE ACTUAL PERFORMANCE
Factory Overview
>> Product Advantages
| HIGH STRENGTH FRAME Utilize die-cast aluminum as the structure of solar powered street light to reduce body weight, enhance structural strength to hold large lithium batteries, improve heat dissipation, and provide flexibility and strong resistance to corrosion. |
| LED CHIPS FROM TOP 5 MANUFACTURERS Leading LED chip brands such as Philips, Cree, Bridgelux, and San'an offer high efficiency chips with over 170LM/W. These chips are used in our solar LED street light along with high-quality optical lenses with a transparency of at least 90%. When combined together, the efficiency of entire LED lamp can achieve over 130LM/W for 3030 LED chips and 150LM/W for 5050 LED chips. |
| UNIQUE LIGHTING DISTRIBUTION Innovative bat-wing lighting distribution design in IP66 solar street light guarantees even and uniform lighting performance, illuminating 30% larger areas compared to traditional sensor solar street light. Various distribution options are available for customers'choice. |
| EASY INSTALLATION The plug&play design of our modular solar lighting system eliminates the need for laying underground cables and professional electricians during installation. This not only saves costs for installation but also allows for flexibility in the size of the solar panels. With a separated solar panel design, we can use larger solar panel to meet the charging needs of big lithium batteries that support high-power lamps. |
| FLEXIBLE COLLOCATION For the energy saving and safety consideration, Dison AIT solar street lights can be equipped with a range of accessory parts, like PIR induction sensors, surveillance cameras, and smart lighting systems, to customize your lighting solution. |
>> Product Applications
1. Village road lighting
In rural areas like small villages, the road lighting for village differs greatly from urban areas, where street lights need to be turned on for long periods at high brightness due to its high traffic flow, but village roads are narrower with less traffic, so It is not necessary to keep lights at full power all the time. Additionally, many remote villages are lacking of basic infrastructure and access to the power grid. Llaying cables underground specially for roads lighting are not economic. This is where the Dison AIO2 solar powered integrated LED street light is a perfect solution for lighting in these areas.
2. Factory/School/Park/Jetty/Parking lots/Perimeter fence
Such using environment are having one common feature that they install the lights primarily for safety consideration, and qty of solar lights needed are not too many, so laying cables to power grid is not economic for these customers. Stand alone solar light with motion sensor or CCTV camera from Dison Group becomes an ideal choice.
3. Passways
Properly lighting up passways can ensure the safety of residents during their way home after dark, simple installation of all in one solar street light at regular intervals can perfectly make you satisfied with the lighting performance.

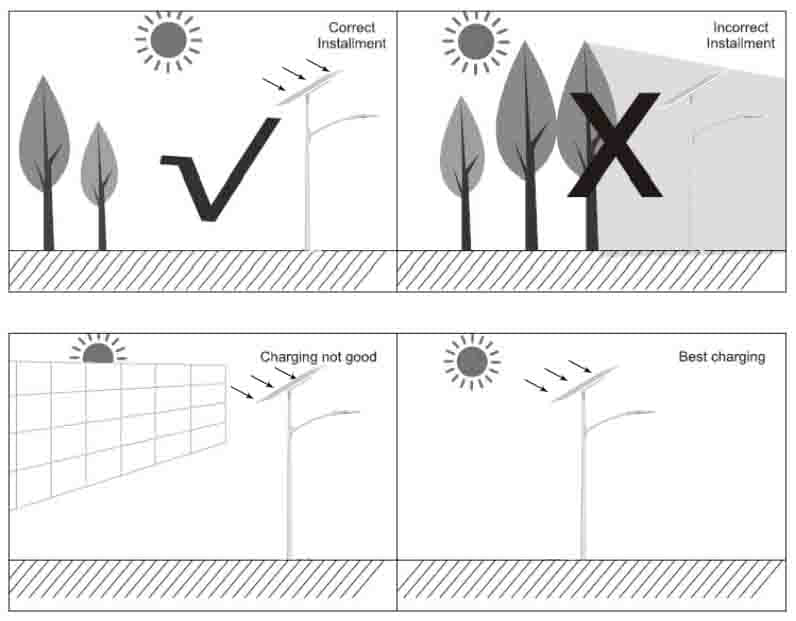

>> Product Operate Guide
