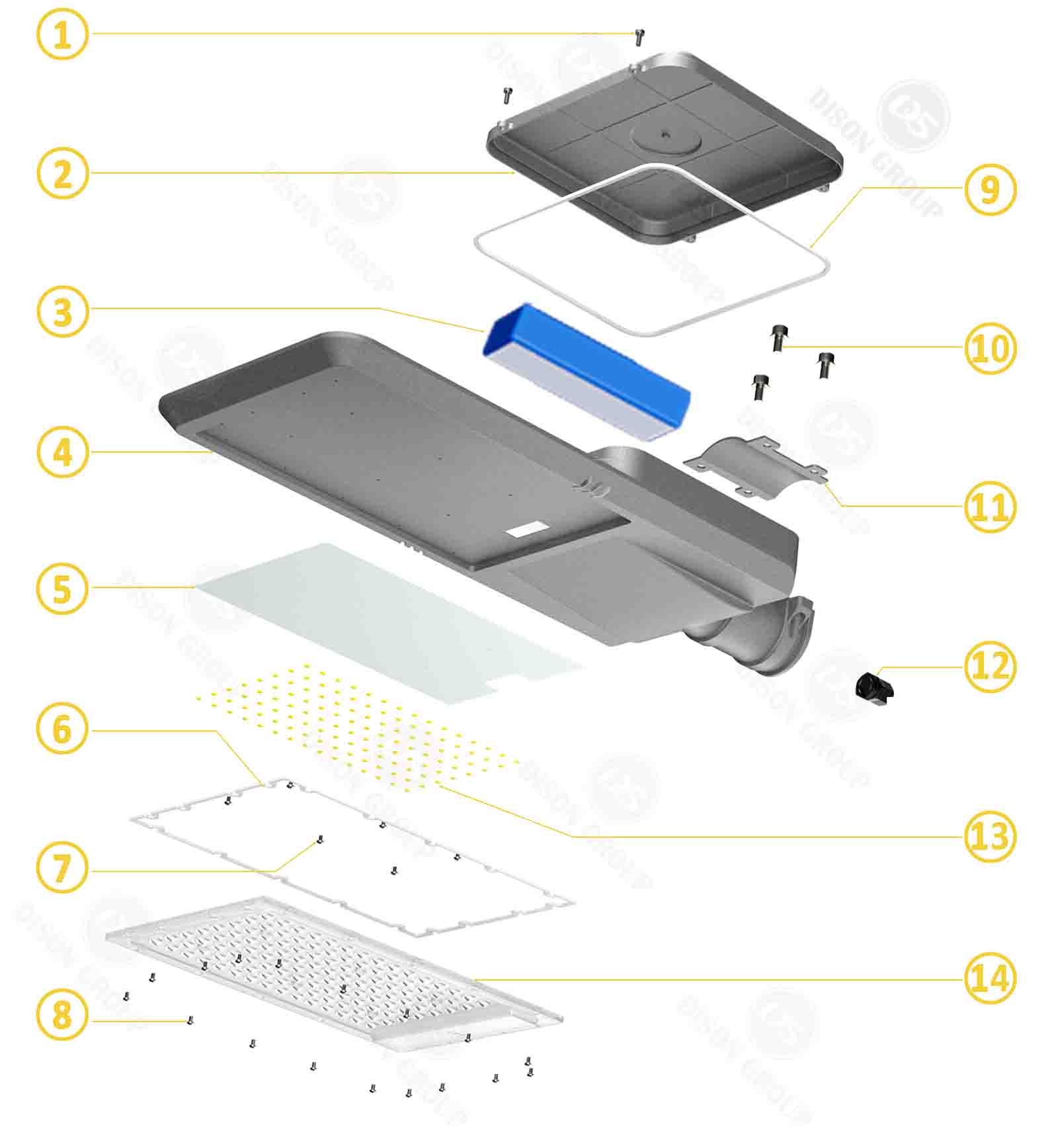

>> Explosion View Of Street Lamp
Components of solar street lamp | |||
NO. | Item name | NO. | Item name |
1 | Screw for lamp cover | 8 | Screws for optical lens |
2 | Lamp cover | 9 | waterproof ring |
3 | LifePo4 lithium battery | 10 | Screws for socket |
4 | lamp fixture main body | 11 | Socket |
5 | PCB board | 12 | waterproof connector |
6 | waterproof ring | 13 | LED chips |
7 | Screw for PCB board | 14 | optical lens |
Optional accessories
Anti-theft thorn
CCTV camera
Anti-bird thorn
PIR sensor
Tilt angle adjustable bracket

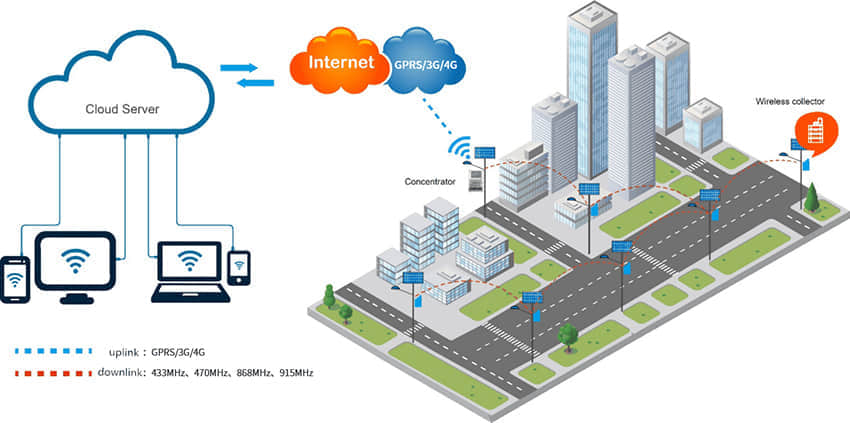

IOT System
>> Technical Parameters
Model | DS-SWS1 80W-200W SOLAR WIND STREET LIGHT |
LED LIGHT | 120pcs 3030 LED chips,≥130lm/w, CRI≥70,3000-6500K customizable |
Solar panel | customized |
Lithium battery | customized |
Solar controller（PWM/MPPT） | 10-20A |
Product size | 660*265*100mm |
Suggested install height | 7-12M |
Lighting mode | 10-12hours per day/ can be customized |
IP rate/IK | IP66/IK08 |
Working temp | -25℃ to 65℃ |
Backups | ＞3days |
Lifespan | ＞10 years |
Warranty period | ＞3 years |
Motion sensor | Optional |
CCTV camera | Optional |
All components can be adjusted according to customer's needs | |
DIALUX SIMULATION TO SEE ACTUAL PERFORMANCE
Factory Overview
>> Product Advantages
| ENVIRONMENT FRIENDLY The LED light is powered by renewable energy sources like sunlight and wind, which will reduce the emissions of carbon and reliance on fossil fuel. |
| RELIABLE The street lighting can be powered by two alternative energy resources,lithium battery can still be fully charged by wind turbines during windy or cloudy days, or get fully charged by sun power under windless weather. |
| COST SAVING The street light powered by solar and wind energy can offer cost savings by eliminating the electricity bills everyday, at the same time, it also reduce the cost thanks to minimal maintenance needed. |
| EASY INSTALLATION Our solar wind street lights is equipped with plug&play design that can get rid of the requirement for underground cables and professional electricians during setup. This not only reduces installation costs but also provides flexibility during solar panels choosing. By using a mini-type wind system, we can meet the charging requirements of large lithium batteries to power up high-power lamps. |
| FLEXIBLE COLLOCATION For the energy saving and safety consideration, Dison AIT solar street lights can be equipped with a range of accessory parts, like PIR induction sensors, surveillance cameras, and smart lighting systems, to customize your lighting solution. |
>> Product Applications
1. Expressway
Expressways connecting different cities always experience heavy traffic flow at fast speed, requiring high levels of brightness during the night. While all-in-one solar street lights with small solar panels and motion sensors may not be suitable for this scenario, all-in-two induction solar street light from DS Group are the perfect solution. These lights are designed to meet the high output needs of expressways, with ample space for solar panels and batteries to ensure long-lasting performance.
2. Highway
Highway lighting plays an important role in ensuring the safety of drivers who are usually traveling at high speeds during the night. Distinguished with street lighting in urban areas, highway lighting serves a broader purpose. It is essential for the brightness of highway lighting to be increased, the coverage area to be expanded, and for the lighting to be even and uniform without causing glare.
3. Main road in the city
Busy streets are often crowed with people even late at night. To prevent car accidents, it is important for the street lighting to remain bright throughout the night. However, main roads in the city have limited space for installing poles on both sides, so the lighting needs to cover a wider area. In these situations, Dison Group recommends using All in two solar street lights.

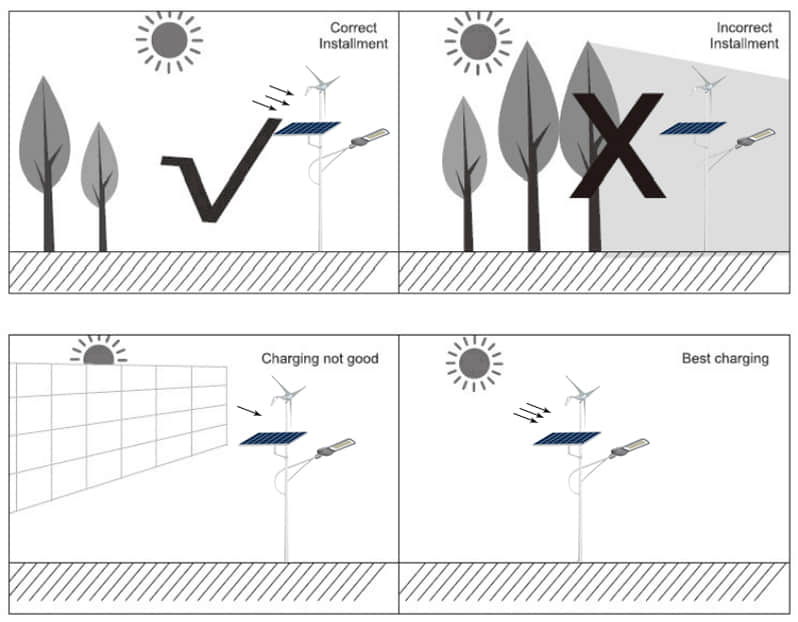

>> Product Operate Guide
